The Hyper Lock System is a modular Blueprint-driven framework for gating interaction until a valid unlock path is resolved. It covers the core lock component, item-based access control, alternate unlock actors, and the supplied medieval lockpick minigame.

For shared setup guidance, see the Migration Guide and Integration Guide. Use the System Atlas to look up functions, variables, events, components, and ownership references. Use this page for Lock System-specific setup, runtime behavior, extension points, and integration notes.

Example lockable door actor using the lock component on an interactable door Blueprint.

Related Videos

Version note: Some videos may have been recorded before V4. The same principles still apply, but asset names, component names, and folder locations may differ. Use this written documentation and the current V4 names as the source of truth.

Overview

In the sample content provided for this document, the system supports straightforward item-based access, a data-driven medieval lockpick minigame, and alternate unlocking through another interactable actor.

At a high level, the lock component sits on the actor that should be protected, such as a door, chest, or another interactable object. When the player attempts to interact, the lock resolves whether the action should pass through immediately, unlock by held item, open a lockpick flow, or stay blocked.

The system is intentionally split between a generic lock layer and a minigame layer. The lock component owns the authoritative locked state, the unlock checks, and the client/server flow. The lockpick actors then provide the actual user-facing challenge, controls, visuals, and completion callbacks. This keeps the core lock state reusable even when projects want more than one bypass method.

• Supports ordinary locked actors such as doors, chests, and other interactables.
• Supports unlock by item tag, which covers keys, keycards, quest items, and other held access items.
• Supports a data-driven medieval lockpick minigame with selectable difficulties.
• Supports alternate unlocking through another actor or interactable component.
• Supports optional item consumption, automatic re-locking, optional open-after-unlock behavior, and XP gain through a skill tag.
• Uses clear Blueprint entry points so buyers can integrate the lock system without rewriting their interact or inventory systems.

Adding the Lock System to a Locked Actor

The example door Blueprint supplied for this documentation uses an AC_Lock_Basic component on the actor that should be protected. The door’s interact event routes through the lock first. If the lock resolves successfully, normal interaction continues into the parent interact behavior.

This is the recommended ownership model for the supplied lock assets: place the lock component directly on the actor that is supposed to stay blocked. That actor then becomes the owner of the locked state, the optional unlock sounds, the optional open-after-unlock behavior, and any follow-up re-lock logic.

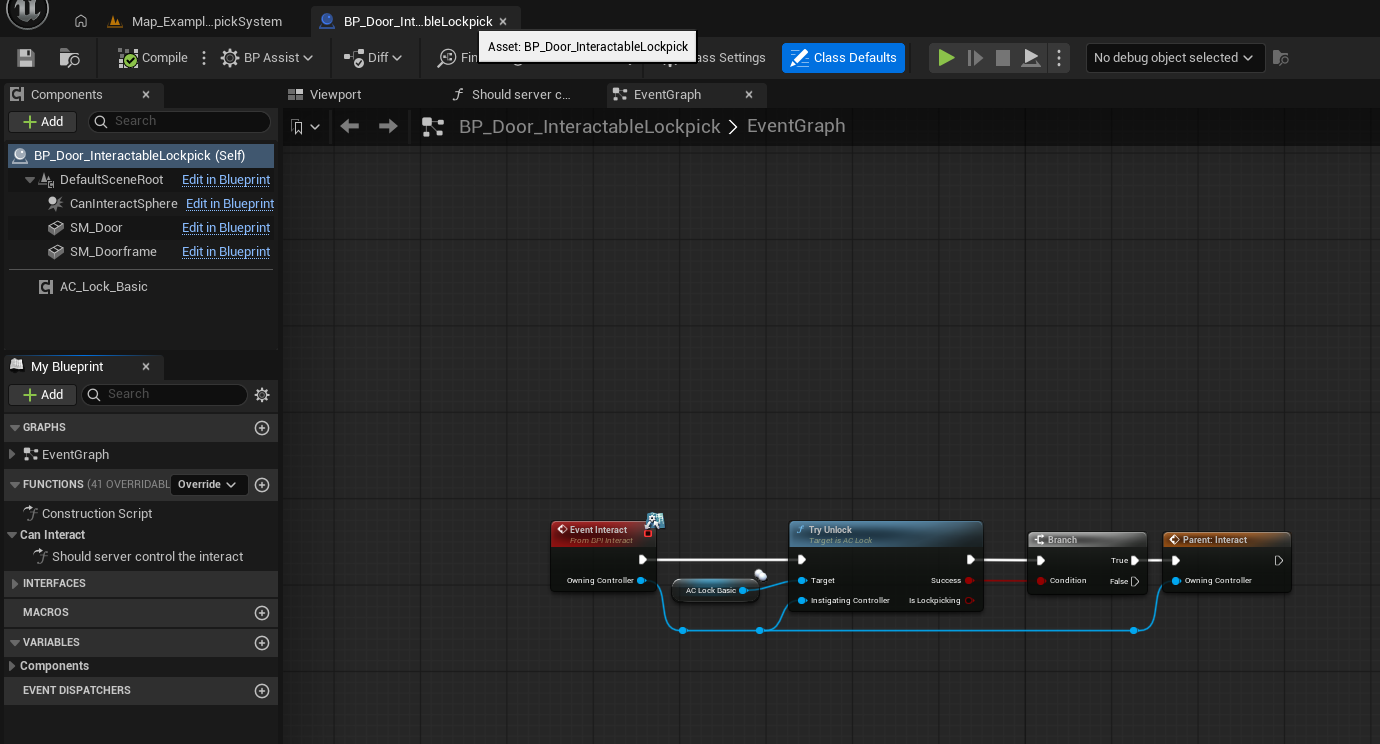

Example door Blueprint with an AC_Lock_Basic component. The interact event calls Try Unlock before continuing into the normal interact flow.

Why place the lock component on the locked actor?

• The actor that is physically locked remains the single source of truth for whether access is allowed.
• The same component can be reused on doors, chests, panels, or other interactables without moving state into a separate manager.
• Interaction is easy to gate: call Try Unlock first, then only continue into the normal interact path if the result says the action succeeded.
• Replication is easier to reason about because the locked actor owns the replicated booleans that matter.
• Optional behavior such as open-after-unlock and auto-relock stays local to the actor that needs it.

Details Panel / Important Variables

The example lock component exposes a small but important set of state, settings, and runtime references. Some fields are purely runtime values. Others are buyer-facing configuration points that determine how the lock behaves in-game.

Structures and Enums Explained

The supplied medieval lockpick route is built around one custom difficulty structure and one difficulty enum. The minigame also uses a float range at runtime when generating the hidden solution window that the player is trying to find.

F_Lock_Medieval

F_Lock_Medieval is the difficulty-definition structure used by the medieval lock data asset. Each entry in the data asset’s Difficulty Settings array represents one authored difficulty row.

E_Lockpick_Difficulty_Type

This enum selects which authored difficulty row should be used for a given lock instance. The supplied enum contains four tiers.

Runtime float range

The medieval minigame generates a hidden float range representing the live solve window. The player’s current prong position is continuously tested against this range and against tolerance-expanded versions of it. That makes the system easy to tune: the data asset defines authored difficulty values, while the minigame converts those values into a live solution and response curve.

Data Assets Explained

The medieval lockpick route is data-driven. The main configuration asset shown in the supplied content is DA_Lock_Data_Medieval. This asset inherits the generic lock settings used by the lock framework and adds medieval-specific difficulty settings.

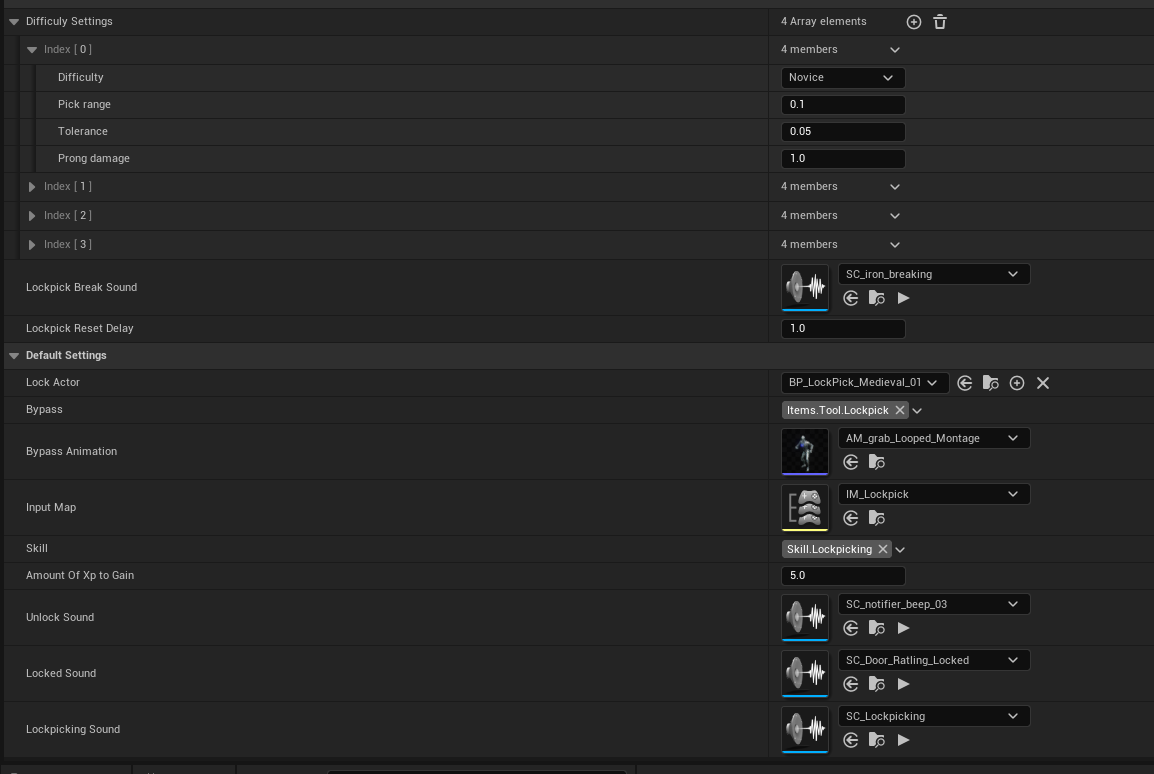

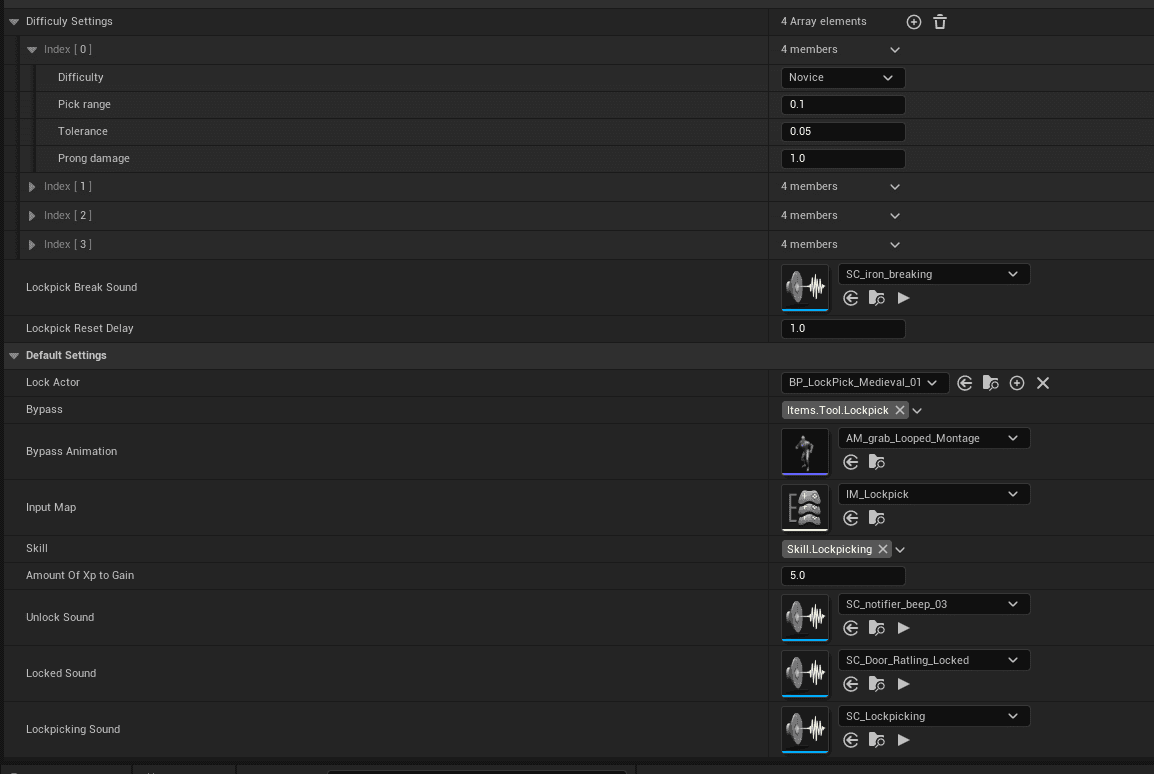

DA_Lock_Data_Medieval, showing both the inherited default lock settings and the medieval-specific difficulty array.

DA_Lock_Data_Medieval

Supplied medieval difficulty values

In practical terms, difficulty becomes harder in three ways at the same time: the valid angle gets narrower, the safe tolerance around that angle gets tighter, and forcing the cylinder while you are wrong becomes more punishing.

Functions to Use

The supplied lock system exposes a mixture of public gameplay entry points, helper functions, replicated state handlers, and minigame utility functions. Buyers usually only need a small subset for ordinary integration, but the deeper functions are useful when extending the system.

Core lock functions

Utility and validation functions

Replication and state handlers

Minigame base functions

Medieval lockpick helper functions

Events, Replication, and State Handling

The supplied assets do not expose a large public gameplay dispatcher list in the same way some manager-style systems do. Instead, the lock system relies on a small number of replicated booleans, server-authoritative RPCs, and minigame-bound completion/cancel events.

• The server owns the final locked state.
• Clients can request unlock attempts, but the authoritative resolution still happens through server-side state changes.
• Is Lockpicking replicates so the lock can start or stop the bypass animation consistently.
• The spawned minigame actor binds success and cancel events back into the lock component so the lock can finalize state, stop animation, and optionally clear ownership.
• OnRep_Is Locked plays the correct feedback sound at the actor location and respects the difference between normal lock feedback and auto-lock behavior.

Unlock Methods Supported By the System

Unlock with items, keys, or keycards

The simplest unlock path is item-based. If Unlock With These Items contains one or more gameplay tags, the lock checks whether the instigating controller currently holds a matching item. This covers ordinary keys, keycards, quest access items, or any other inventory-backed access requirement.

• If the item exists and the player has it, the lock can unlock immediately.
• If Destroy Used Unlock Item After Use is enabled, one matching item is removed after a successful unlock.
• If Auto Lock After Unlock is enabled, the actor can re-lock after completing the open action, which is useful for held passes that should not permanently unlock the actor.

Unlock with a lockpick minigame

If the lock cannot be opened with a held access item, the lock can fall back to a lockpick route. The component verifies that the lock has a valid lock data asset, that the data asset defines a bypass item and lock actor, and that the player currently owns the required bypass item. If all checks pass, the lock creates the configured minigame on the client.

• A valid lock data asset decides which minigame actor to spawn.
• The bypass item tag decides which tool the player must hold or own to attempt lockpicking.
• The minigame base takes over controls and displays lock UI.
• The lock component remains the owner of the final success, cancellation, and unlock state.

Unlock via another interactable actor

The supplied AC_Unlock_ViaInteractable helper component allows another actor to unlock one or more locked actors. This is useful for levers, buttons, panels, trigger objects, remote releases, or scripted utility objects.

• The component stores an array of target locked interactables.
• It gets each target’s lock component and changes its lock state.
• Open After Unlock can trigger the target’s open behavior immediately after unlocking.
• Lock After Use can re-lock the target afterward.
• Force Unlock can route through the target lock’s own Try Unlock path before the direct state change is applied.

Themed access examples such as “hacking”

In the supplied demo context, “hacking” is better understood as a themed access interaction rather than a separate subsystem defined by the lock assets shown here. If a project wants a genuine hacking minigame, the current architecture already supports that direction: a new bypass minigame actor can be created and assigned through an appropriate lock data asset.

Hooking the Lock System Into Other Systems

The lock system is designed to integrate cleanly with other Hyper systems without re-documenting those systems inside the lock documentation.

Interaction system

The example door actor shows the intended integration pattern: the interact event calls Try Unlock first. If the result is a successful unlock rather than a still-blocked state, the normal interact path continues into the parent interact implementation.

Inventory or item ownership

Item-based unlocks depend on the ability to resolve gameplay tags into items and verify whether the instigating controller currently has those items. From the lock system’s perspective, this is intentionally generic. Keys, keycards, passes, and similar access items are all just held-item checks.

Skills and XP

The minigame base awards XP through the level manager using the Skill and Amount Of XP To Gain fields from the assigned lock data asset. This lets buyers tie successful bypass attempts into a progression system without hard-wiring XP logic into every door or chest.

UI, prompts, and audio

The supplied assets also show small UI and audio integration points. The minigame base creates a lock overlay and a lock-controls widget, while the medieval child can send informational prompts such as cancellation feedback. The lock component itself handles locked/unlocked/lockpicking sounds so buyers do not have to manually play those on every protected actor.

How To: Build Common Setups

How to make a simple locked door that opens with a key or keycard item

1. Add the lock component to the locked actor.
2. Make sure the actor’s interact event routes through Try Unlock before continuing into the normal open/interact behavior.
3. In Unlock With These Items, add the gameplay tag or tags that should count as valid access items.
4. Decide whether the item should be consumed after use by enabling or disabling Destroy Used Unlock Item After Use.
5. Decide whether the actor should remain unlocked or re-lock after opening by setting Auto Lock After Unlock.
6. Test the actor once with the correct item and once without it.

How to make a lockpick-only door

1. Add the lock component to the actor.
2. Assign the correct lock data asset to the component.
3. Do not rely on Unlock With These Items unless you want an alternate direct access route.
4. Make sure the player can own the bypass item required by the data asset. In the supplied example this is Items.Tool.Lockpick.
5. Choose the intended difficulty enum for the lock instance.
6. Test the full flow: start lockpicking, cancel it, fail it, and complete it.

How to make a chest or another non-door interactable

1. Place the lock component on the protected actor exactly the same way as a door.
2. Route that actor’s interact event through Try Unlock.
3. If the actor should not automatically open when the lock changes state, do not rely on open-after-unlock behavior.
4. Keep the actor’s own open/loot/use logic inside its normal interaction path so the lock only acts as the gatekeeper.

How to unlock a door using another actor, such as a switch or button

1. Add the AC_Unlock_ViaInteractable helper component to the switch, button, panel, or utility actor.
2. Populate its Locked Interactable array with the target actors that should be affected.
3. Decide whether to use Open After Unlock.
4. Decide whether Lock After Use should re-lock the targets after the action.
5. Use Force Unlock when you want the target lock to still resolve its own unlock path or side effects before the direct state change is applied.
6. Call the helper actor’s interact or trigger logic and test each target.

How To: Tune the Medieval Lockpick

The medieval lockpick is deliberately tunable through a small set of variables. The easiest way to think about difficulty is to separate it into three questions: how easy it is to find the correct angle, how forgiving the lock feels when you are close, and how much punishment the pick takes when you force the wrong angle.

• Increase Pick Range if you want the solve angle to be easier to locate.
• Increase Tolerance if you want the cylinder to feel more forgiving around the correct angle.
• Increase Prong Damage if you want bad forcing attempts to destroy picks more quickly.
• Use Novice or larger Pick Range/Tolerance values for early-game or accessibility-friendly locks.
• Use Master or smaller Pick Range/Tolerance values when the goal is a high-risk bypass challenge rather than a light interaction gate.

The supplied Generate Solution logic also pulls a lockpicking level multiplier from the level manager. That means difficulty can scale not only from the authored row but also from player progression. If a project wants skill growth to matter more, this is one of the best places to expand.

Extending the System with Your Own Lockpick Variant

The existing architecture is already set up for additional bypass minigames. Buyers do not need to rewrite the core lock flow to support a new variant.

1. Create a child of BP_Lock_Pick_Base.
2. Override Initialize Variables to cache the data you need from the assigned lock asset.
3. Override Generate Solution if your minigame uses a hidden solve state.
4. Add your own input events and success logic.
5. Call Stop Lockpicking with success true when the bypass is completed and with success false when cancelled or failed.
6. Create an appropriate data asset that points to your new lock actor class and defines the right bypass item, input mapping, XP, and audio.
7. Assign that data asset to locks that should use the new route.

This is the main reason the system is valuable as a framework instead of a one-off lockpick Blueprint: the authoritative lock state stays generic while the minigame presentation can vary per project or per content type.

Troubleshooting and Practical Notes

Example Flows

Item-based unlock

1. The player interacts with a locked door.
2. The door’s interact event calls Try Unlock on the lock component.
3. The component sees that unlock item tags are configured.
4. It checks whether the instigating controller has a matching item.
5. If yes, the lock changes state to unlocked, optionally consumes the item, and continues into the protected actor’s normal interaction path.

Medieval lockpick success

1. The player interacts with a locked actor without a direct access item.
2. The lock checks for a valid lock data asset and for the required bypass item.
3. The lock creates the medieval minigame actor on the client and marks the lock as lockpicking.
4. The player rotates the prong, tests angles, and engages the cylinder.
5. If the prong is close enough to the generated solve window, engagement progresses safely.
6. When engagement reaches 1.0, the minigame reports success, the lock stops lockpicking, changes its locked state, and can optionally open the actor.

Medieval lockpick cancel or failure

1. The player cancels or repeatedly forces the lock at a bad angle.
2. The minigame sends cancellation or failure back into the lock flow.
3. The lock stops bypass animation and cleans up the current minigame actor.
4. Controls are restored, widgets are removed, and no unlock occurs unless success was reported.

Unlock via another interactable

1. The player uses a lever, button, or utility actor that has AC_Unlock_ViaInteractable.
2. The component loops over the configured target interactables.
3. For each target it finds the lock component and changes its state.
4. Depending on the helper settings, the target can open immediately and can also re-lock afterward.

Summary

The Hyper Lock System is most useful when understood as a reusable gatekeeper layer rather than as a single lockpick Blueprint. The core lock component owns the authoritative locked state, direct item checks, unlock state changes, audio feedback, and the transition into bypass flows. The minigame layer then handles the player-facing challenge, controls, widgets, and completion callbacks.

In the supplied content, the medieval lockpick route is fully data-driven through DA_Lock_Data_Medieval and the F_Lock_Medieval difficulty rows. Buyers can use the system in a simple way by treating it as an item-gated door or chest, or they can push it further by creating entirely new bypass minigames through the BP_Lock_Pick_Base framework.

For day-to-day use, the most important buyer workflow is simple: add the lock component to the protected actor, route interaction through Try Unlock, configure either direct access items or a lock data asset, and then test the exact user journey you want the player to experience.
