Weapon attachment system #

Technical Documentation

Games by Hyper – Unreal Engine system overview, architecture, setup, runtime flow, and extension guide.

Demo overview board from the level introducing the two supported attachment workflows.

---

Contents #

---

Introduction #

The Weapon Attachment System is a modular framework for attaching, swapping, previewing, and applying equipment attachments at runtime. It is designed to support two broad game styles with the same underlying data: inventory-driven survival/open-world workflows and predefined loadout-driven shooter/arena workflows.

At the highest level, the system treats attachments as real runtime actors rather than only cosmetic data rows. Weapons and attachments are both inventory-aware, equipment-aware, and capable of being updated during play. The same architecture also supports a loadout menu, save-backed persistent loadouts, visual attachment actors on the equipped weapon, and optional attribute payloads defined from data.

The implementation follows Hyper's usual abstract/concrete split. Abstract classes define the variables, dispatchers, and function signatures. Concrete classes hold the gameplay logic. For attachments specifically, BP_Attachment_Abstract is the abstract parent, while BP_Attachment_Base is the first concrete implementation that performs real work. Additional child blueprints extend BP_Attachment_Base when a specific attachment needs bespoke behaviour.

• Supports both inventory-owned attachments and fully predefined loadout attachments.
• Uses data tables to define attachment metadata, mesh assets, icon assets, animation references, and assigned attributes.
• Lets equipment define which attachments are accepted per weapon/equipment row.
• Separates logical attachment state from the spawned visual attachment actor.
• Includes a loadout manager for save-backed weapon setups and an attachment manager for live equip/unequip flow.
• Supports server-authoritative equip and application flow with client-side UI and presentation.

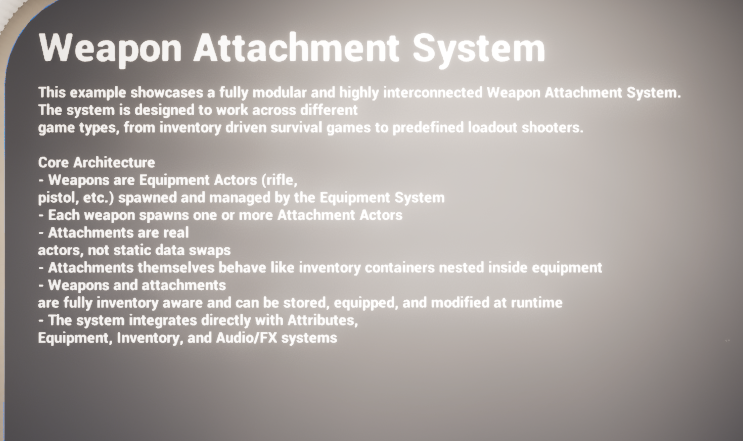

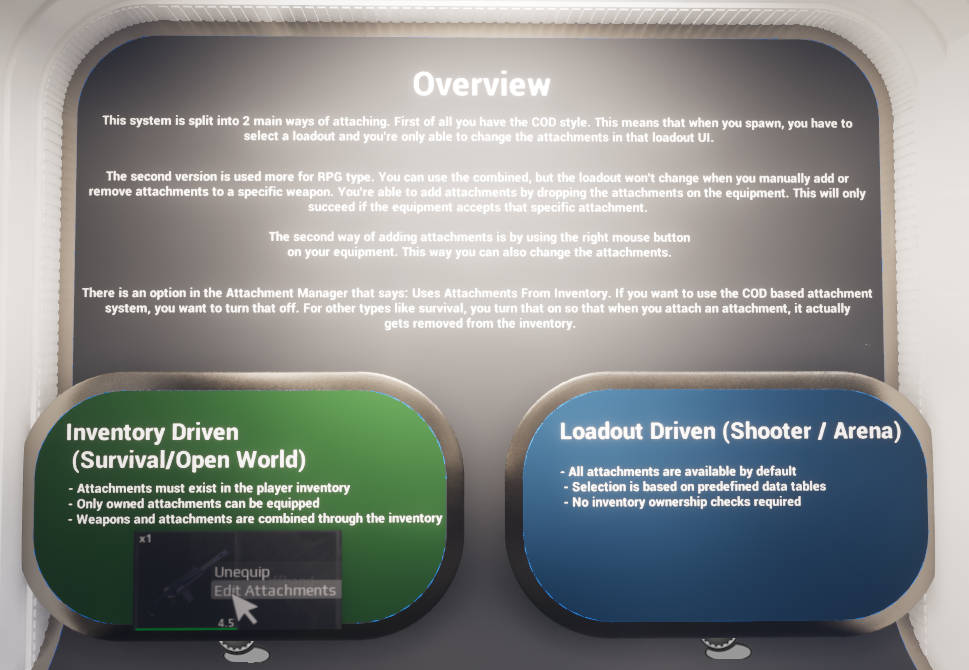

System overview board from the demo level summarising the modular Weapon Attachment System.

---

System Overview #

The system is intentionally flexible enough to operate in two different content models. The same weapon can either be customised from owned inventory items, or it can expose a predefined set of attachment options in a loadout-style menu.

---

Inventory-driven mode (Survival / Open World) #

In this mode the attachment must exist in the player's inventory before it can be equipped. The runtime manager checks the actual inventory state, and weapons plus attachments behave like linked inventory-aware equipment. This is the more RPG/survival-friendly workflow and is the mode used when a designer wants the player to physically find, loot, buy, or craft attachments before they become available.

• Attachments must exist in the player's inventory.
• Only owned attachments can be equipped.
• Weapons and attachments are treated as connected inventory content.
• Right-click or interaction-based editing can be used to add or remove attachments from equipment.

---

Loadout-driven mode (Shooter / Arena) #

In this mode attachment availability is driven by predefined data rather than inventory ownership. The player is shown all attachment options allowed by the relevant loadout definition and accepted attachment setup. This is the faster shooter-style mode used for predefined classes, arena kits, or controller-owned loadout screens.

• All allowed attachments can be shown immediately.
• Selection is driven by predefined loadout/equipment data rather than owned inventory items.
• The player can change the loadout before spawning or while in menu flow.
• Loadout application can happen immediately or after respawn depending on the configuration.

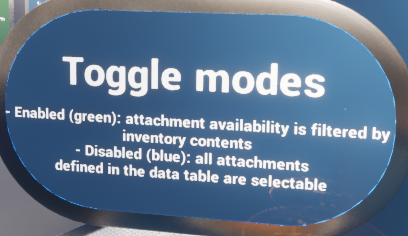

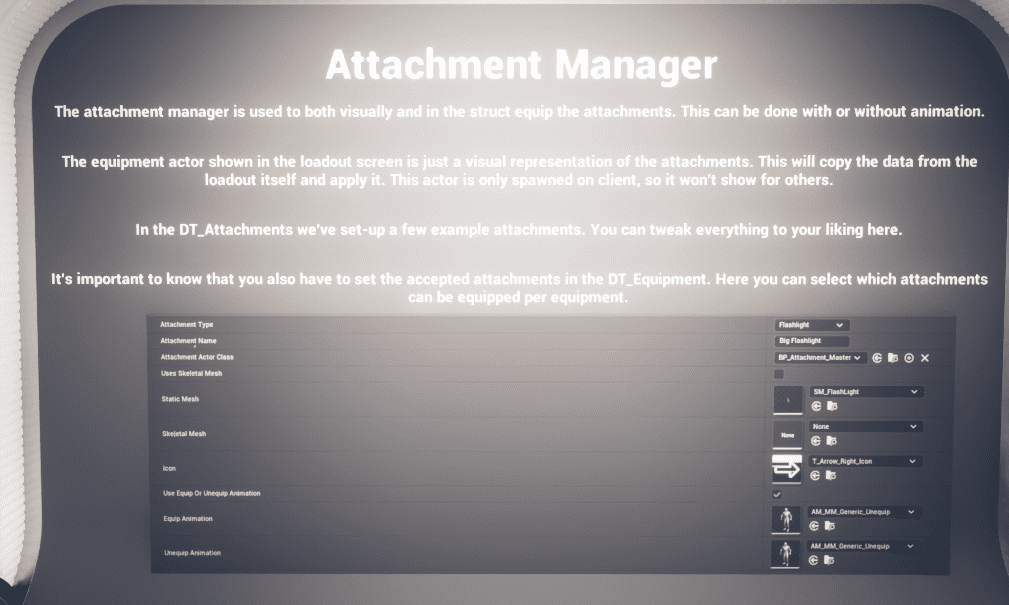

A key toggle mentioned in the demo is the Attachment Manager setting that controls whether attachments are sourced from inventory. Disabling that setting enables the more Call of Duty-style loadout flow. Leaving it enabled keeps the survival/open-world behaviour where attaching an item removes it from inventory and equipping is restricted to owned items.

---

Core Architecture and Asset Roles #

The Weapon Attachment System is best understood as a small group of cooperating managers plus a data-driven visual attachment actor. The concrete implementation shown in the sample revolves around three major gameplay-facing pieces: the loadout manager, the live attachment manager, and the base attachment actor.

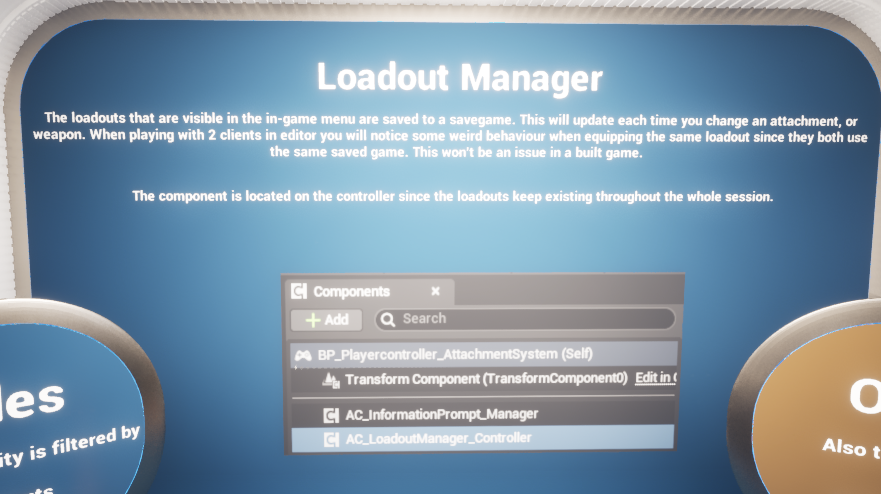

Loadout Manager demo prompt noting that visible in-game loadouts are saved and that the component is placed on the controller.

---

Adding the System to a Project #

The concrete implementation shown in the sample splits loadout management from live attachment management. In practice, setup is a combination of controller-side component ownership, data-table setup, equipment acceptance setup, and optional UI/menu flow.

---

Add the loadout manager #

AC_PC_LoadoutManager is the manager responsible for creating, validating, and applying loadout data. In the demo it is placed on the controller, which is appropriate because loadouts persist for the player across the session and act as a public API for UI, respawn flow, and save-backed selection.

• Add the concrete loadout manager component, not the abstract definition.
• Configure settings such as whether the loadout screen should open on BeginPlay, maximum number of loadouts, and whether the first selection should trigger immediate respawn/application.
• Ensure the slot-type-to-equipment-type mapping reflects the tags used by your project.

---

Add the attachment manager #

AC_PC_AttachmentManager is the runtime manager responsible for equipping and unequipping attachments from the currently relevant equipment. It tracks temporary equip/unequip state, validates continuation on the server, and spawns or updates the visual attachment actor.

• Use the concrete component rather than the abstract definition.
• Decide whether the project should use inventory-owned attachments or fully predefined loadout attachments.
• Make sure the manager can access the relevant equipment and inventory systems in the owning player flow.

---

Populate DT_Attachments #

Every attachment that can be shown in the system should have a row in DT_Attachments. This row is the master definition used by loadout editing, attachment equip flow, and the base attachment visual actor.

• Set the attachment gameplay tag.
• Choose the attachment type from E_Attachment_Type.
• Assign the actor class used to spawn the visual attachment actor.
• Specify whether the attachment uses a static mesh or skeletal mesh.
• Assign the relevant icon and optional equip/unequip montages.
• Populate Assigned Attributes and Custom Overrides when needed.

---

Define accepted attachments on equipment #

A weapon or equipment row must declare which attachments are legal for that item. The supplied screenshots show this as an Accepted Attachments array on the equipment definition. This is the main per-item whitelist that prevents invalid mounting.

---

Wire in UI and demo entry points #

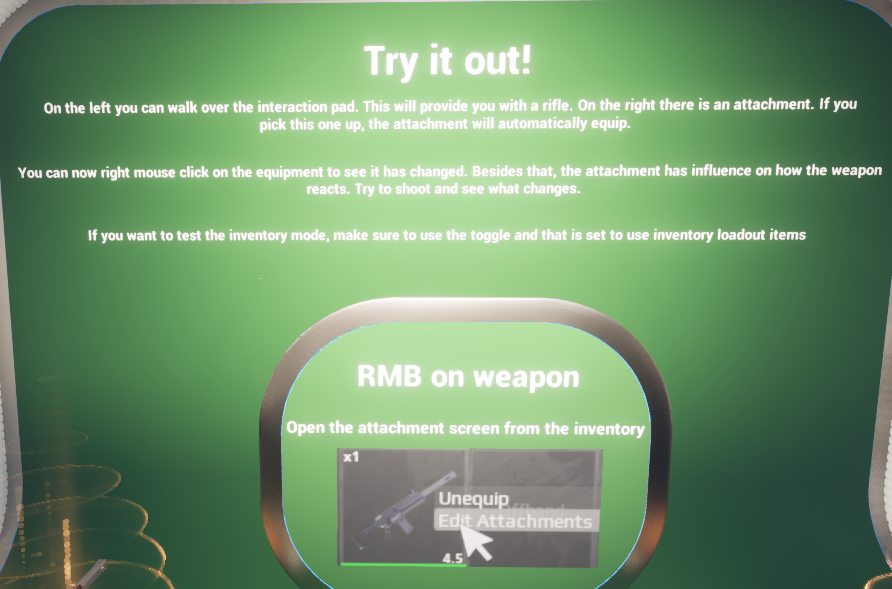

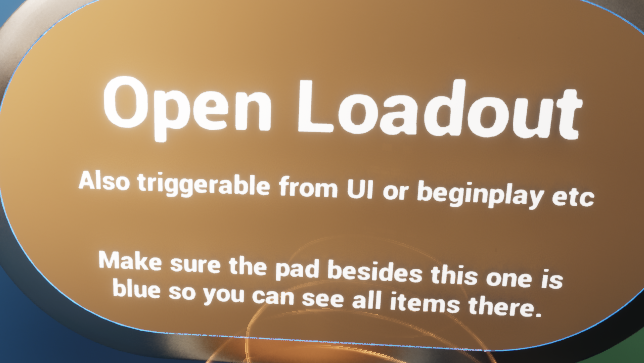

The demo environment shows several ways to open and test the system: an explicit 'Open Loadout' prompt, begin-play menu opening, right-click editing from the inventory/equipment UI, and direct pickup/testing flow. The same runtime managers support all of these as long as the UI or interaction layer forwards into the public functions and events.

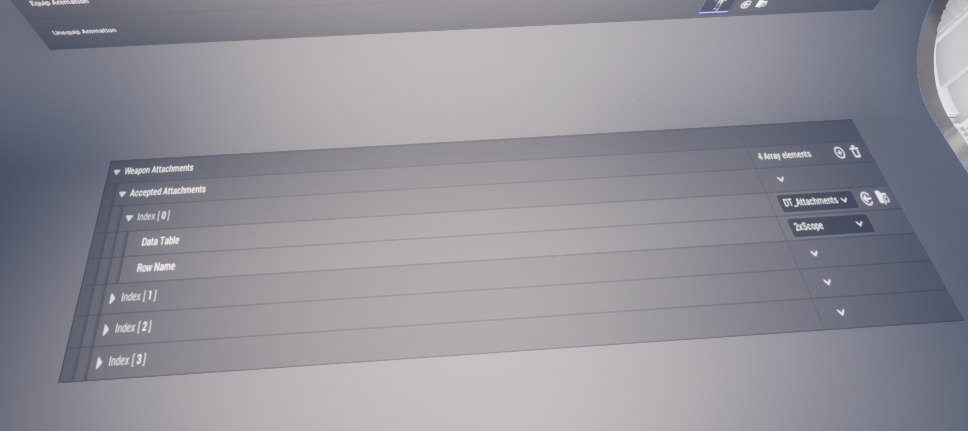

Example of accepted attachment setup on equipment. This whitelist decides which DT_Attachments rows are valid for a given item.

---

Details Panel / Important Variables #

The live system is highly data-driven, but there are still a number of key configuration and runtime variables that shape how it behaves. The tables below focus on the variables visible in the supplied screenshots and the roles they play in the concrete implementation.

---

AC_PC_LoadoutManager – key variables #

---

AC_PC_AttachmentManager – key variables #

---

BP_Attachment_Base – runtime data #

---

Structures, Enum, and Data Tables Explained #

The system is built around a concise but expressive data model. Attachments are primarily defined through a dedicated data table row structure and are then referenced by the loadout and runtime managers.

---

E_Attachment_Type #

E_Attachment_Type is the high-level category enum used throughout the system to identify what kind of slot an attachment belongs to. The supplied enum includes the following values: None, Scope, Stock, Underbarrel, Muzzle, Magazine, Flashlight, and Laser.

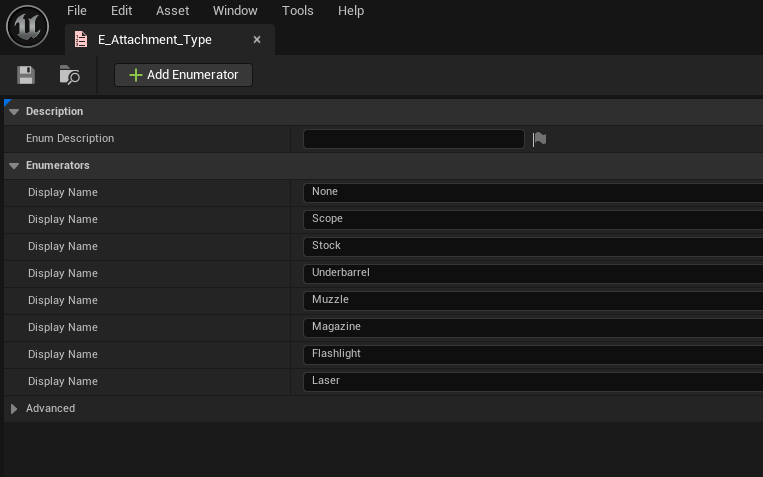

E_Attachment_Type enum values used to group attachment slots and resolve existing attachments by type.

---

F_Gameplay_ObjectArray #

F_Gameplay_ObjectArray is a helper struct pairing a gameplay tag with an Object array. In the shown attachment data it is used for the Custom Overrides collection. The exact interpretation of the objects is project-specific, but the structure provides a flexible way to hang arbitrary data or override assets from a gameplay tag key.

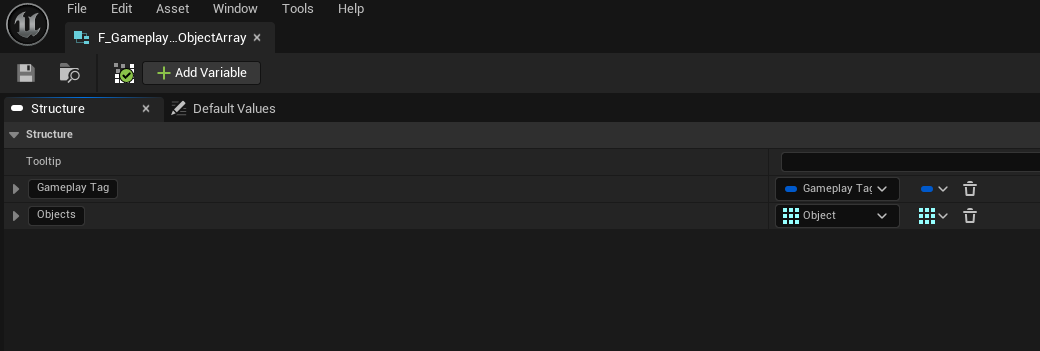

F_Gameplay_ObjectArray structure.

---

F_Loadout #

F_Loadout stores one complete player loadout entry. The screenshot shows a Name plus four item slots: Primary Weapon, Secondary Weapon, Lethal, and Tactical. Each slot stores a Starting Inventory Slot Item-type payload, which means a loadout entry does not merely remember row names; it remembers full item payloads suitable for translating back into live inventory and equipment state.

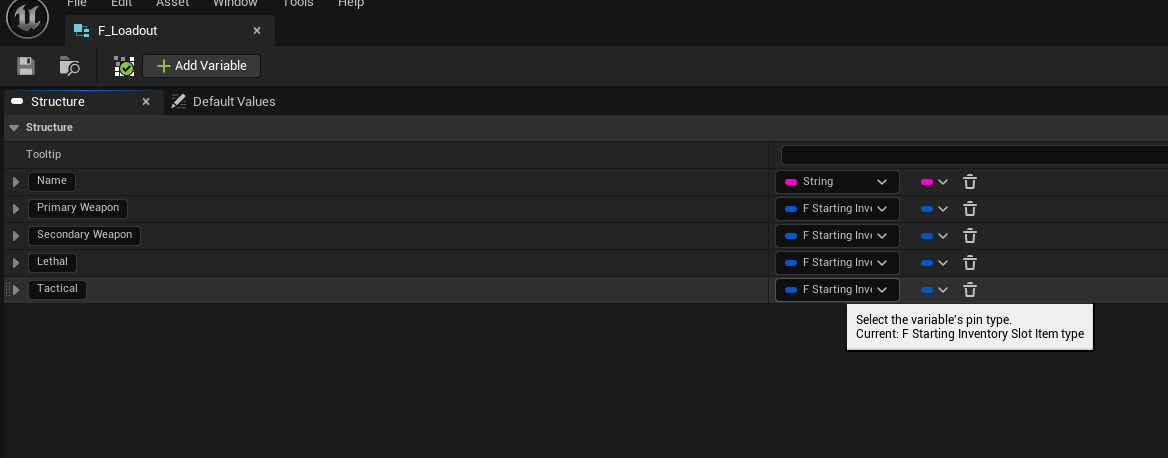

F_Loadout structure with a name and four key item slots.

---

F_Weapon_Attachment #

F_Weapon_Attachment is the central attachment definition structure and the row type used by DT_Attachments. It combines slot metadata, visual asset references, optional animation references, attribute payloads, and extensibility hooks into one reusable struct.

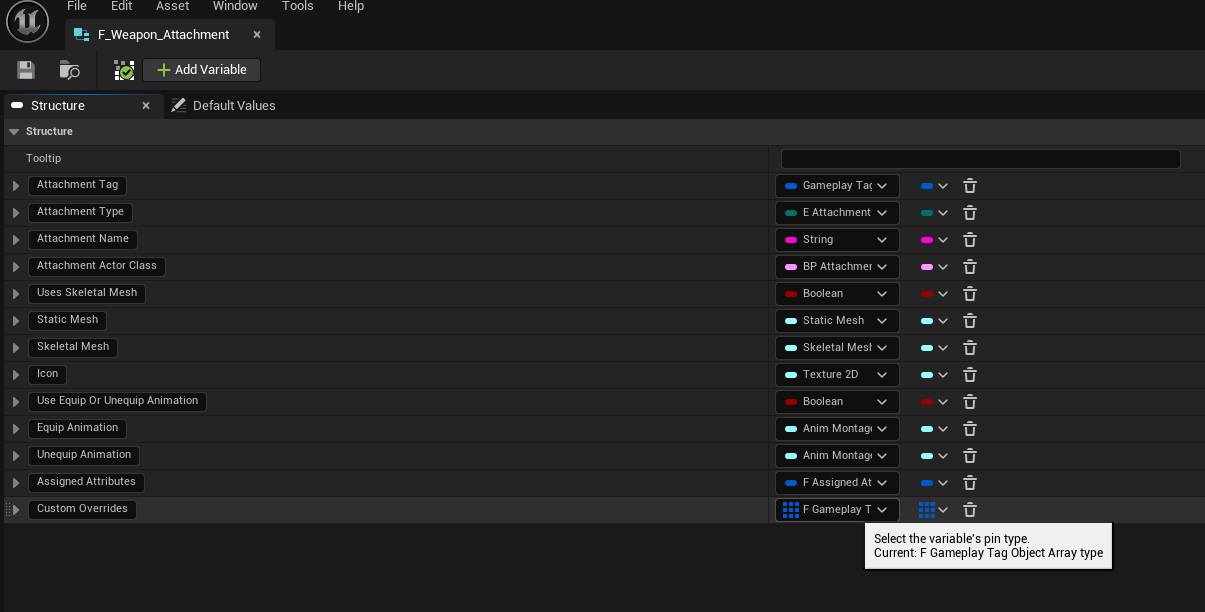

F_Weapon_Attachment row structure used by DT_Attachments.

---

DT_Attachments #

DT_Attachments is the primary attachment definition table. The supplied screenshot shows example rows such as Empty, BigFlashlight, SmallFlashlight, and Silencer. Each row defines the attachment type, tag, display name, actor class, mesh mode, icon, optional animations, assigned attributes, and custom overrides.

• Empty is a useful placeholder row for representing 'no attachment' state.
• Flashlight rows demonstrate the same slot type supporting multiple concrete items.
• The Silencer row demonstrates a muzzle slot entry.
• Because the row stores the actor class, the same data table can spawn either a fully generic base attachment or a specialised child blueprint such as a flashlight with custom aiming logic.

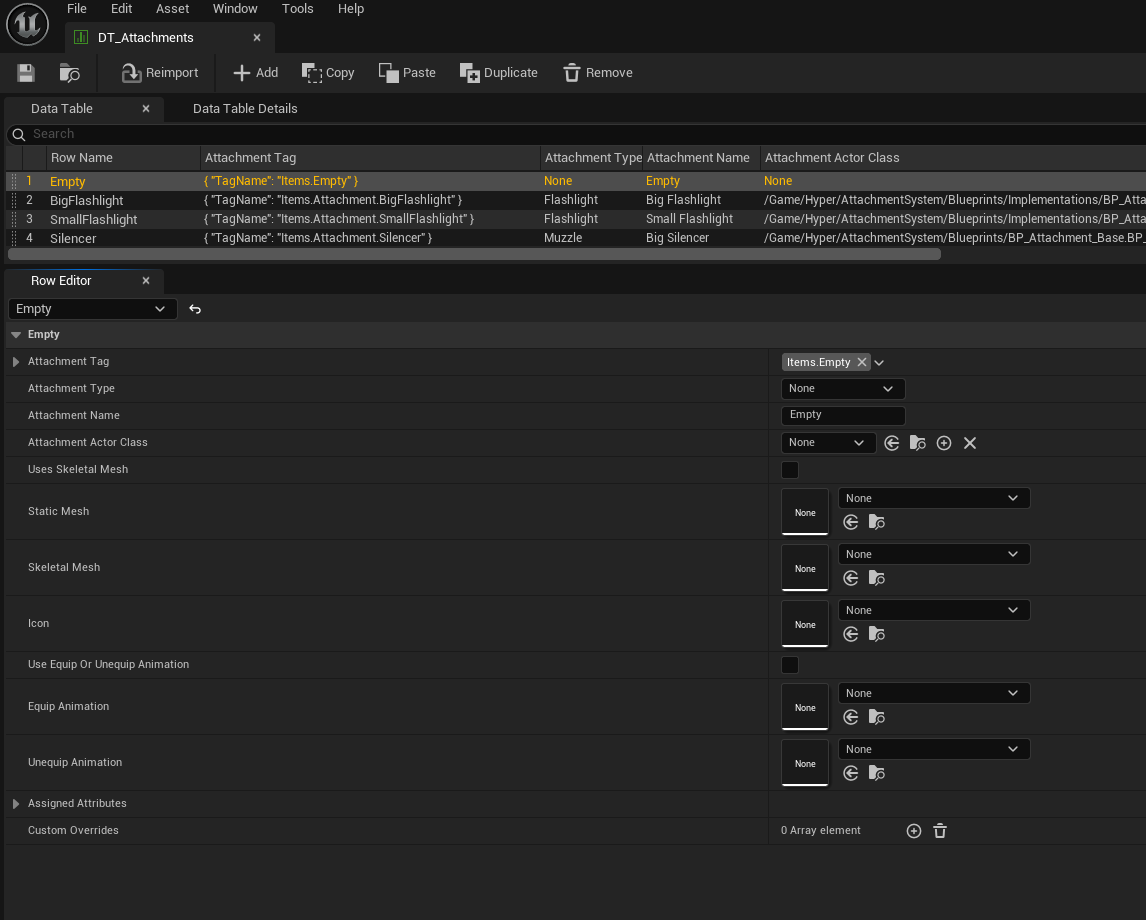

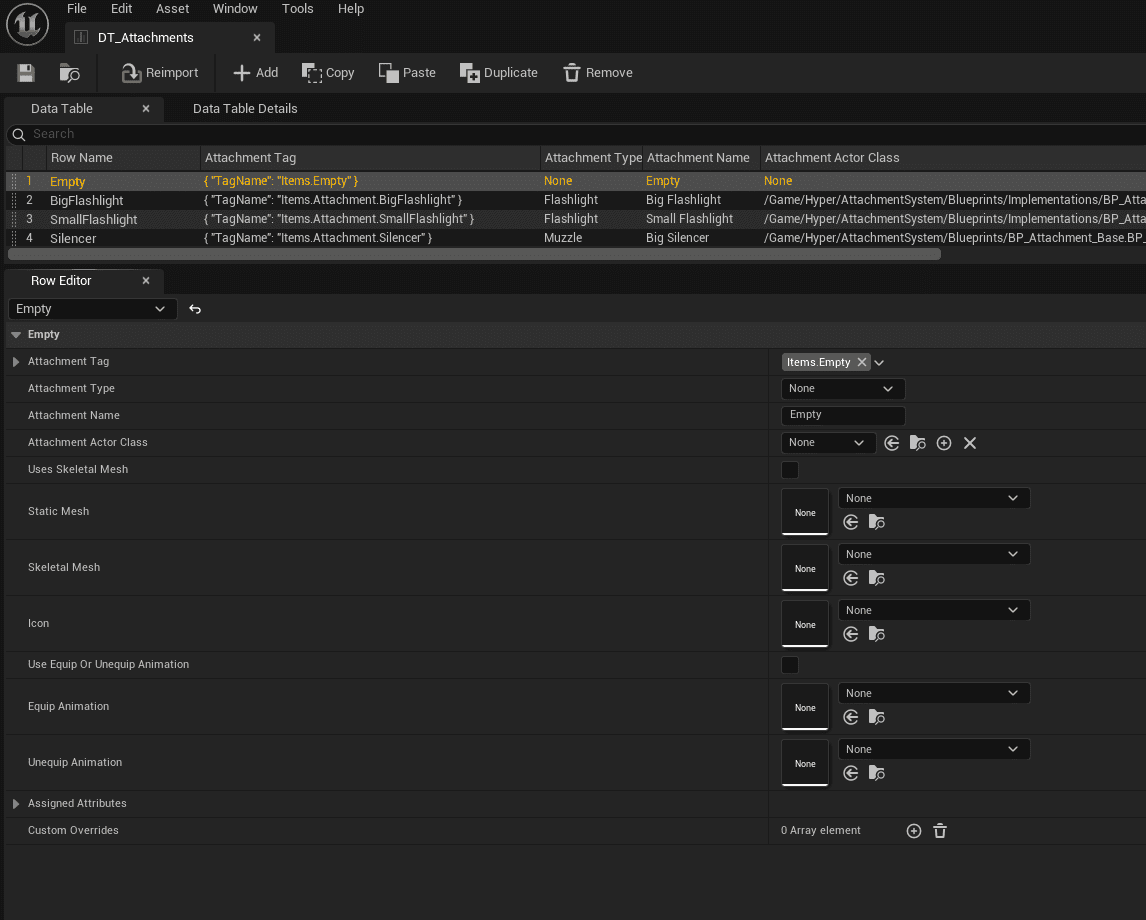

DT_Attachments example rows.

---

DT_Equipment accepted attachments #

The equipment definition table stores the accepted attachment whitelist for each equipment row. The screenshot shows an Accepted Attachments array containing DT_Attachments row handles. This is the item-side validation layer that decides which attachments can be mounted to a given weapon or equipment entry.

In practice, DT_Attachments answers the question 'what is this attachment?', while the Accepted Attachments array on equipment answers the question 'is this attachment legal for this weapon?'.

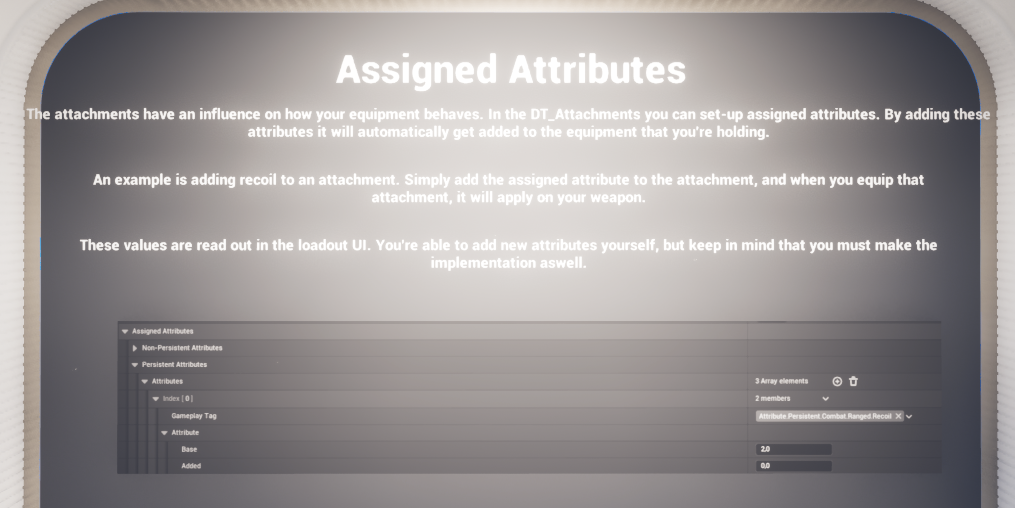

Assigned Attributes example from DT_Attachments. These values are added to the equipment or weapon when the attachment is equipped.

---

Loadout Manager Explained #

AC_PC_LoadoutManager is the persistent, player-facing side of the system. It does not physically spawn visual attachment actors itself. Instead, it owns the editable loadout data, validates loadouts, converts that saved data back into live inventory/equipment state, and coordinates with respawn and UI flow.

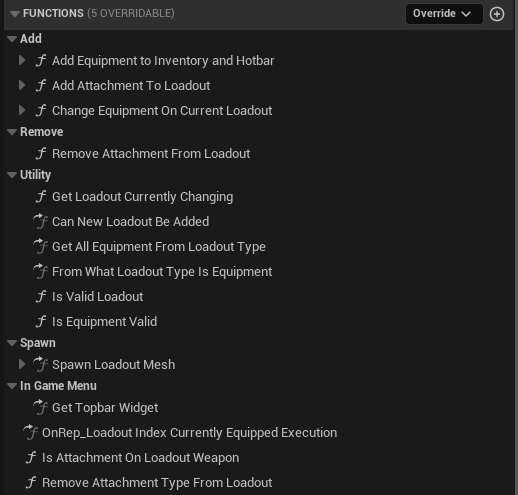

Function groups exposed by AC_PC_LoadoutManager.

---

Main responsibilities #

• Maintain the list of custom loadouts and the currently equipped loadout.
• Add equipment and attachments into the loadout data structure.
• Remove attachments from the current loadout by type and slot.
• Change a weapon/equipment entry inside the currently edited loadout.
• Validate a loadout before applying it.
• Translate loadout slots into equipment-type queries.
• Open and focus the loadout UI tab when required.
• Apply a selected loadout immediately or defer it until respawn.
• Synchronise updates between client and server and broadcast that the loadout changed.

---

Important function groups #

---

BeginPlay and respawn binding #

On BeginPlay the manager does more than just open UI. It also binds into respawn flow. The supplied event graph shows an authority-side validation of the respawn manager, then a bind to the respawn event. When that respawn event fires, the manager calls Server Equip Loadout using the cached currently equipped loadout and index. This means the selected loadout survives death and respawn flow and is re-applied automatically when the character comes back.

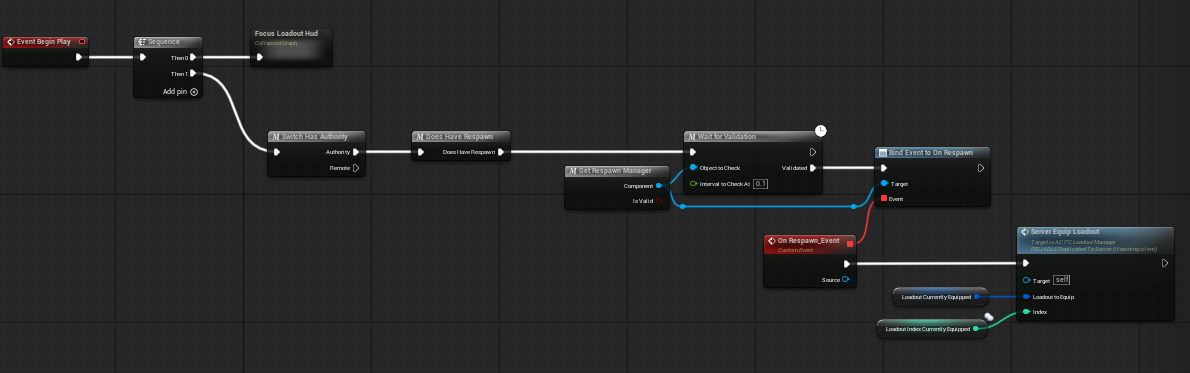

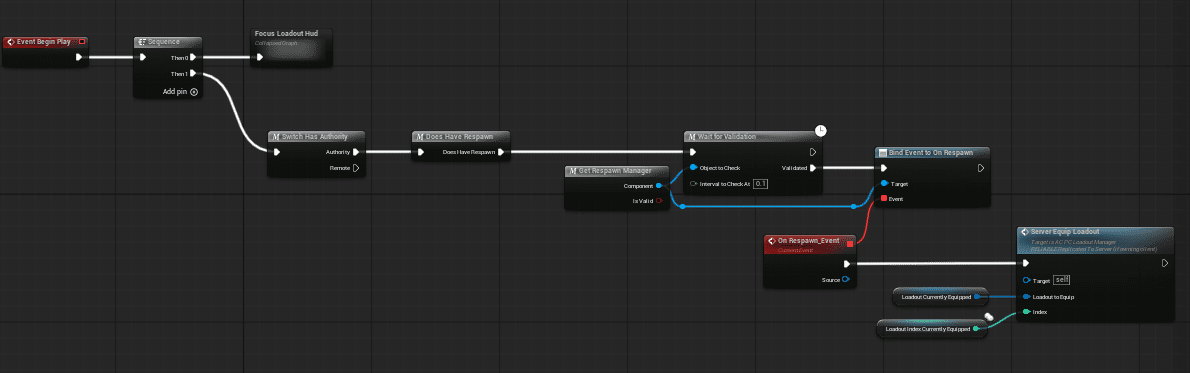

AC_PC_LoadoutManager BeginPlay flow binding to respawn and re-equipping the current loadout.

---

Applying a loadout #

Loadout application is intentionally split into multiple paths so the same system can support arcade loadout selection and survival/open-world progression. The manager first asks whether respawn logic is available. If no respawn handler exists, it can equip the loadout directly. If respawn logic is available, it can either defer the application until the next respawn or force an immediate spawn/equip on the first loadout selection.

1. The player or UI chooses a loadout to apply.
2. Server_Apply Loadout checks Can Use Respawn Logic.
3. If respawn logic is not available, the manager immediately calls Server_Equip Loadout.
4. If respawn logic is available, the manager evaluates Respawn On First Loadout Selection and Is First Loadout.
5. It then either stores the selected loadout for application after respawn or triggers the first-spawn path and equips it immediately.

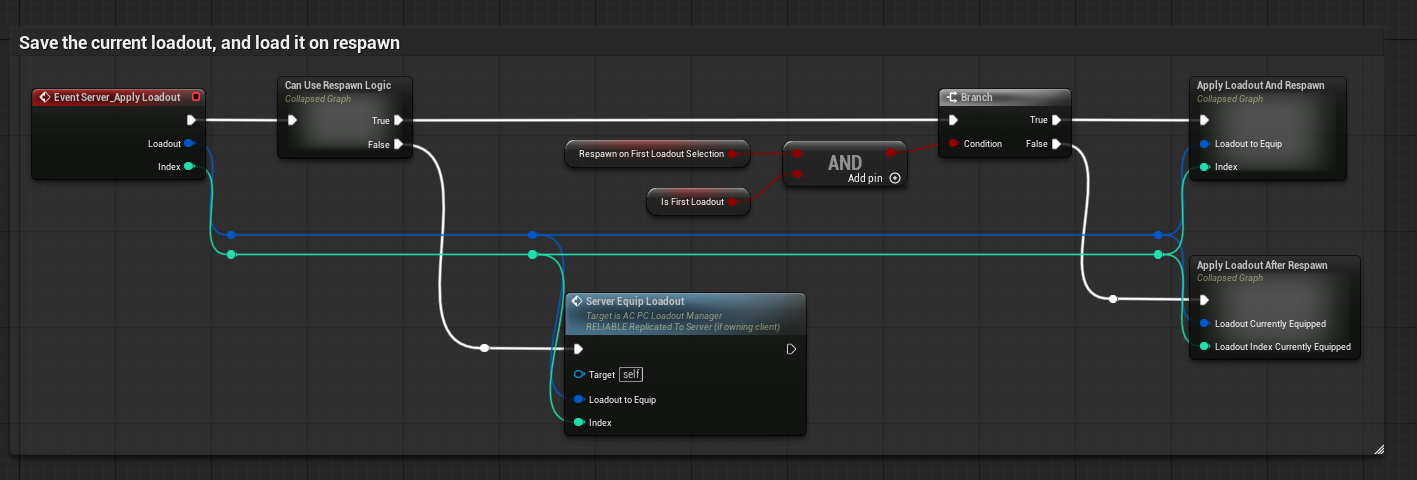

Server_Apply Loadout choosing between immediate and respawn-delayed application.

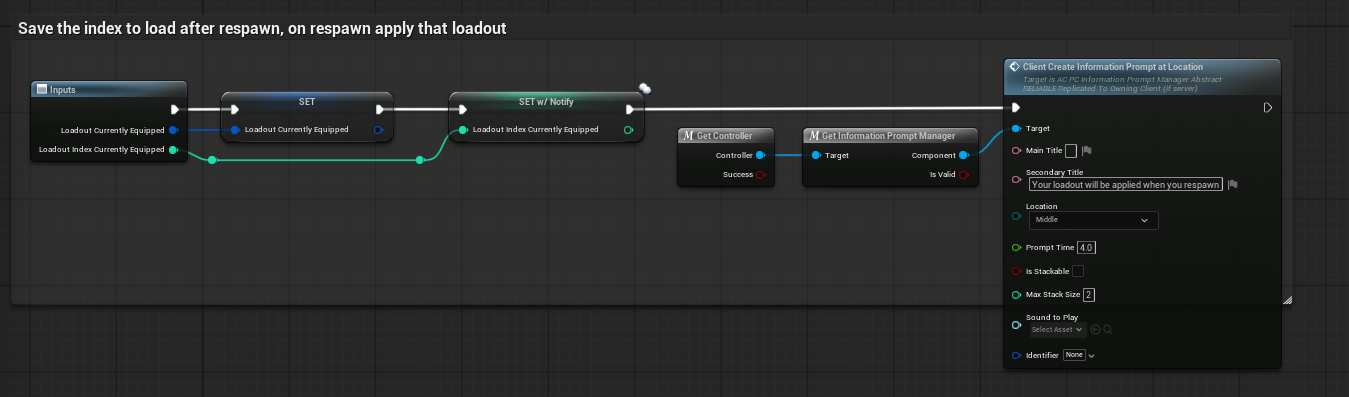

Apply Loadout After Respawn stores the new loadout and informs the player that it will be applied when they respawn.

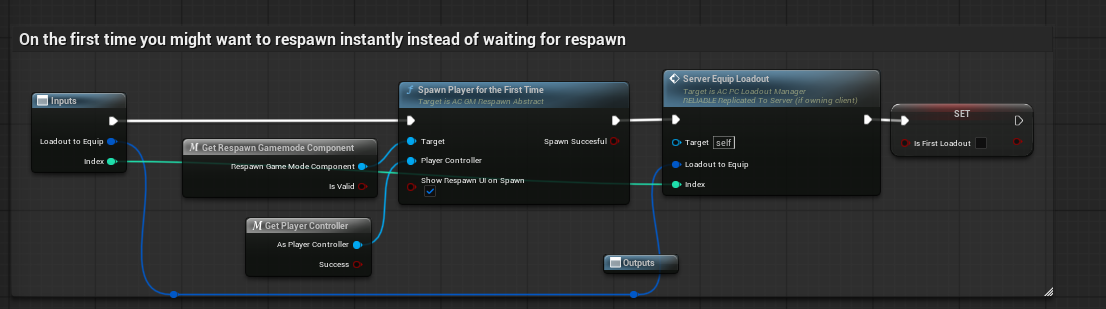

Apply Loadout And Respawn path used for the first selection when immediate spawn/equip is desired.

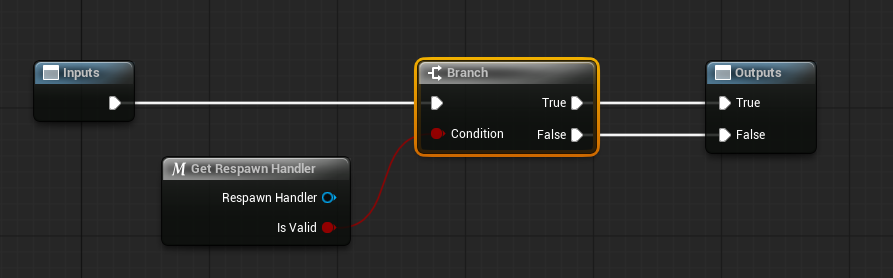

Can Use Respawn Logic simply checks whether a valid respawn handler exists.

---

Equipping the selected loadout #

Server_Equip Loadout validates the loadout, caches it as current, and then translates the saved data back into live runtime inventory/equipment. The graph shows that the F_Loadout is broken into its Primary Weapon, Secondary Weapon, Lethal, and Tactical entries. The primary weapon is added to the inventory and hotbar and then equipped, while the other slots are also added back into the player's live inventory state.

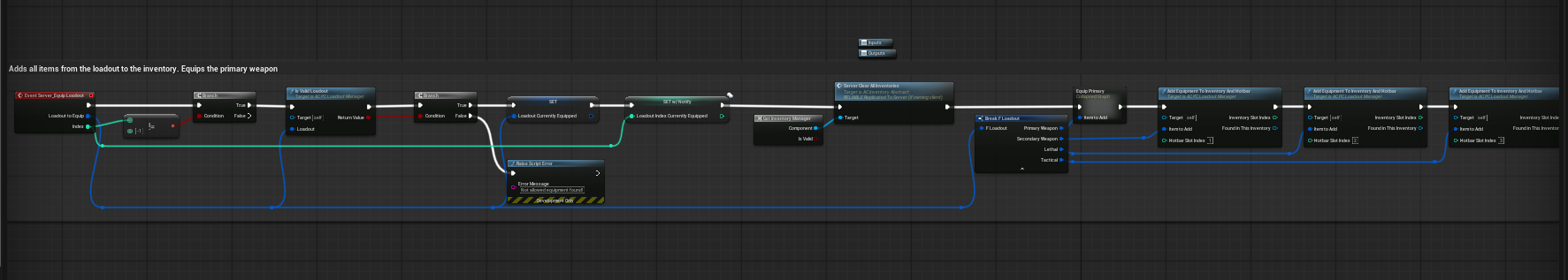

Server_Equip Loadout rebuilding inventory and equipping the primary weapon from the selected F_Loadout.

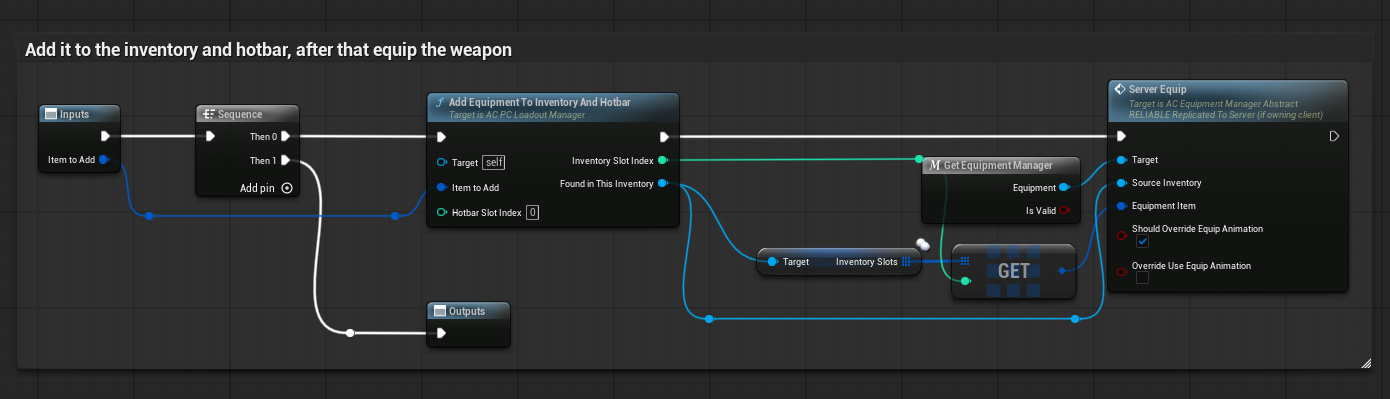

Equip Primary adds the item to inventory/hotbar and then forwards the relevant slot to the equipment manager for equipping.

---

Editing loadout attachments #

Attachment editing inside the loadout manager works on the saved loadout struct rather than directly on the live weapon actor. When Add Attachment To Loadout is called, the manager loads the current custom loadout entry, chooses the correct slot by tag such as Primary or Secondary, updates the relevant weapon attachment data, saves the modified loadout back into the slot array, and broadcasts that the loadout changed.

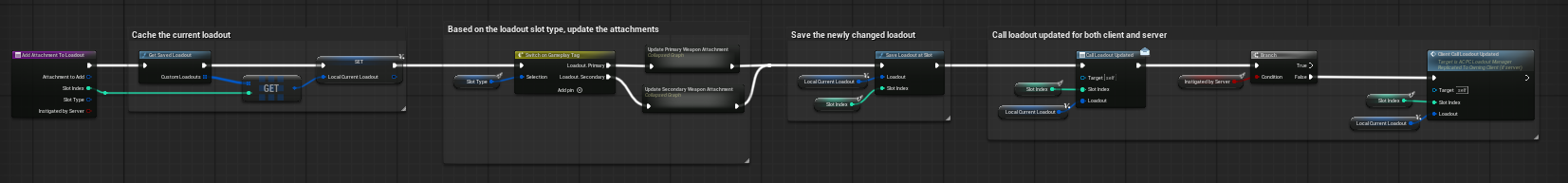

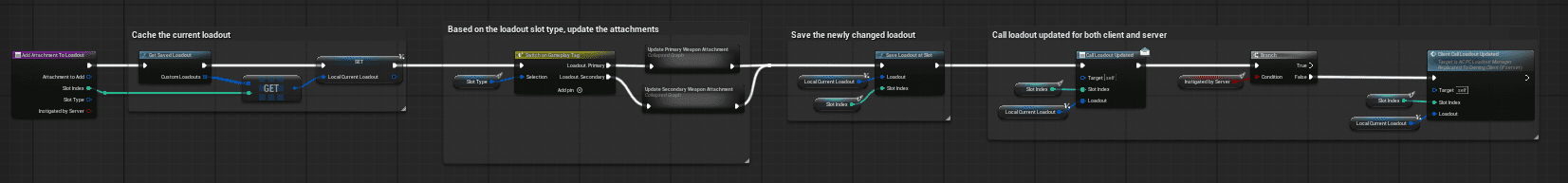

Add Attachment To Loadout updating the correct weapon inside the currently edited loadout and saving the result.

Removal is the inverse operation. Remove Attachment From Loadout loads the chosen loadout entry, identifies the target slot, removes the relevant attachment type from the selected weapon's attachment state, saves the revised loadout, and rebroadcasts the change.

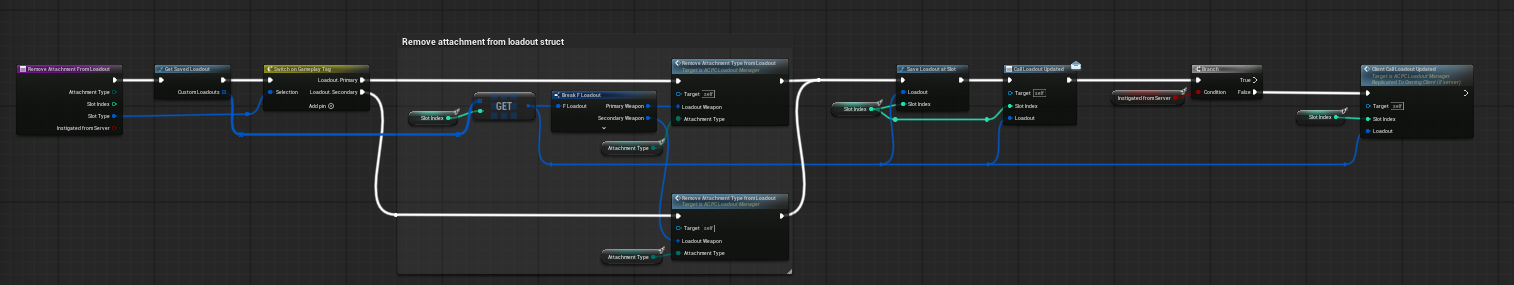

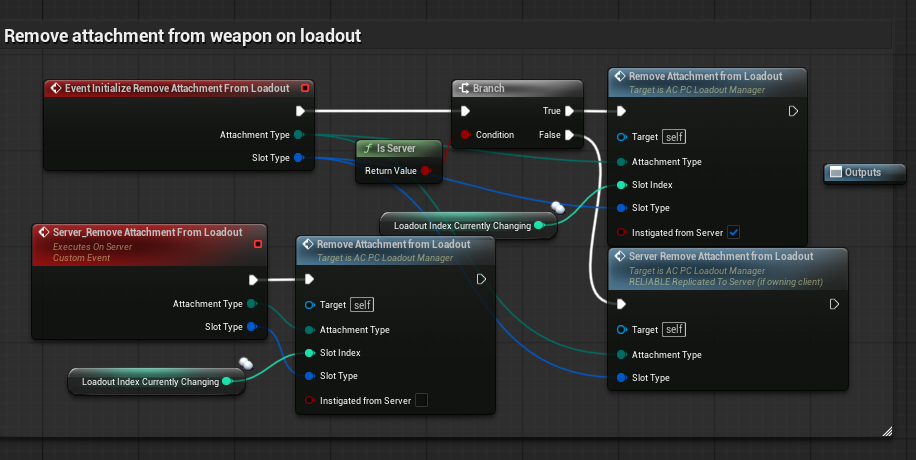

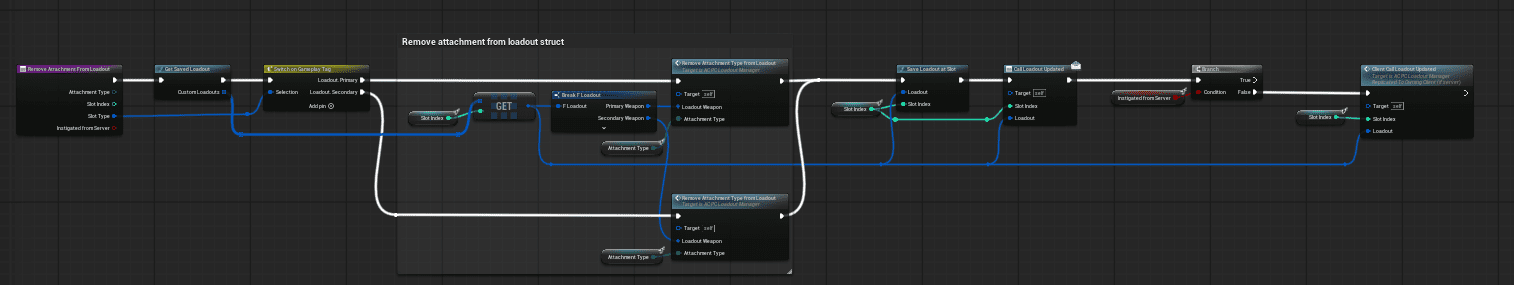

Remove Attachment From Loadout updating the saved loadout data and then broadcasting the change.

Changing the weapon itself is a separate operation from changing the attachment list. Change Equipment On Current Loadout replaces the chosen slot's equipment item but does not necessarily apply it instantly in the world; the sample explicitly notes that this path is intended to take effect after respawn when running in respawn-aware mode.

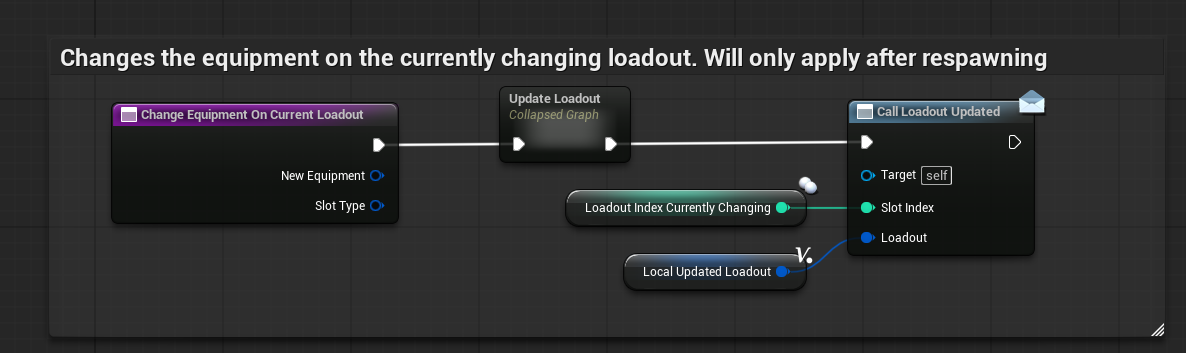

Changing the equipment on the currently edited loadout.

The UI-facing part of the manager can also open and focus the loadout tab directly. The supplied event graph shows a client event that gets the HUD, creates the in-game menu, and focuses the Loadout tab.

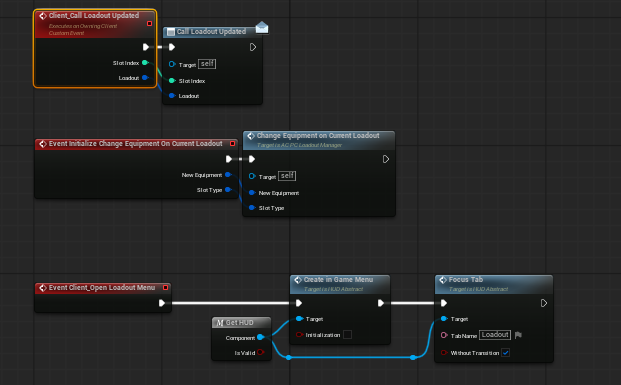

Loadout update, equipment-change, and open-menu entry events.

Finally, the manager can receive gameplay-tag-based game settings and disable the loadout menu for specific modes. The supplied example shows the menu widgets being cleared when a mode-specific loadout setting is turned off, which is how the sample prevents loadout use in battle-royale-style flow.

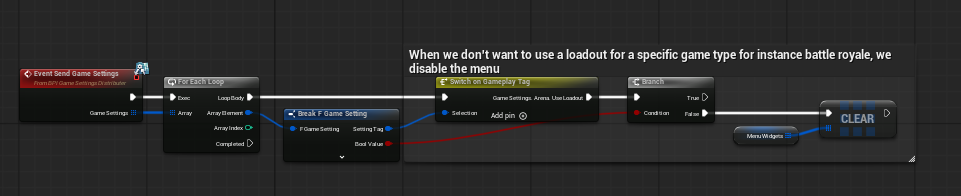

Game settings input being used to disable the loadout menu for a specific game type.

---

Attachment Manager Explained #

AC_PC_AttachmentManager is the live runtime manager responsible for attaching and removing attachments from equipment, validating whether an operation can continue, deciding whether to use animation, spawning or updating the visual attachment actor, and notifying the rest of the project when attachment state changes.

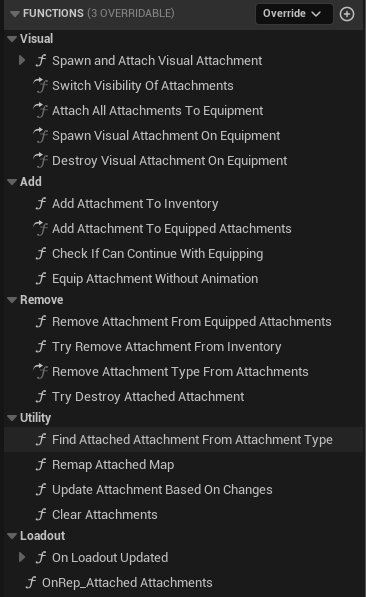

Function groups exposed by AC_PC_AttachmentManager.

---

Function groups and responsibilities #

---

High-level equip pipeline #

1. A client event begins the equip request with the target inventory, slot index, attachment item, and animation preferences.
2. If another equip is already in progress, the new request is ignored until that state is cleared.
3. The manager caches the target container, slot index, attachment item, and animation override flags.
4. A server RPC validates whether the equip can continue.
5. If validation fails, the client resets its cached temporary equip state.
6. If validation succeeds, the client chooses between animated or instant application.
7. Both paths update logical equipped attachment state and request the server to spawn and attach the visual actor.
8. Completion fires the attachment-added-or-removed event or dispatcher and clears transient equip state.

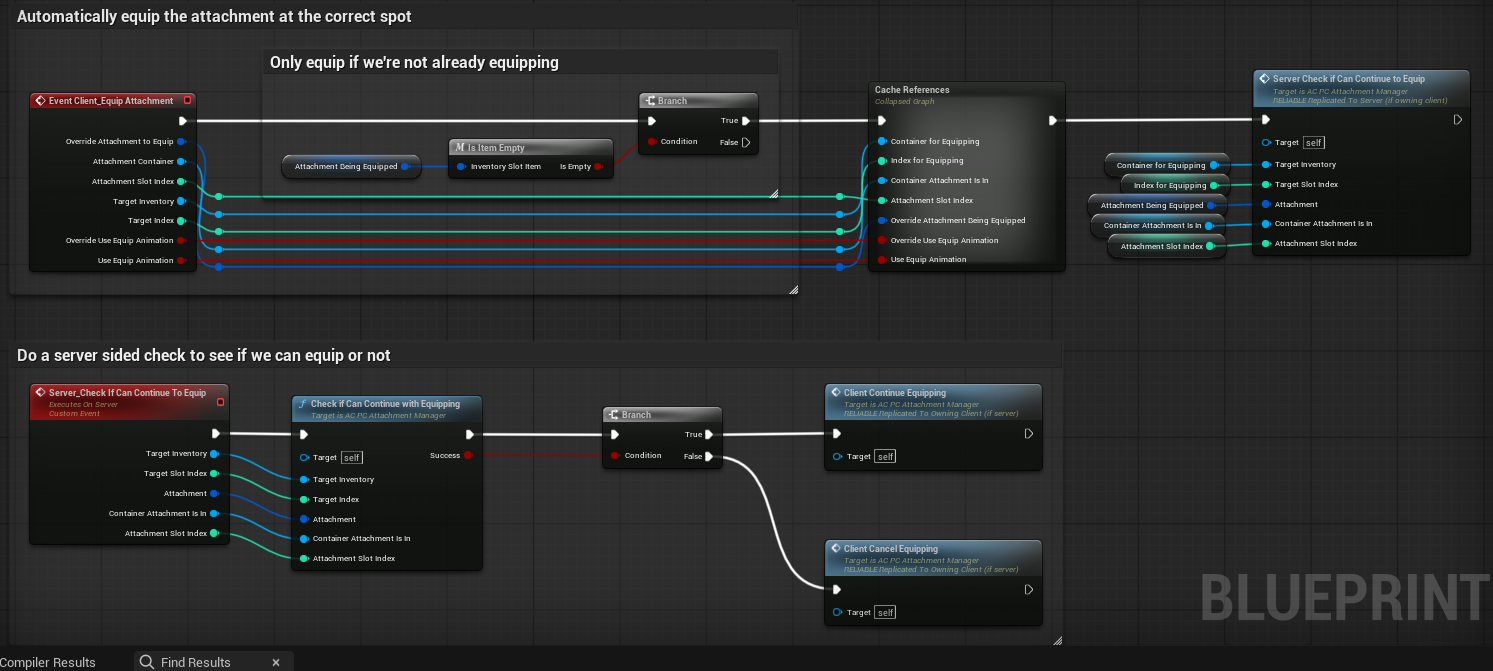

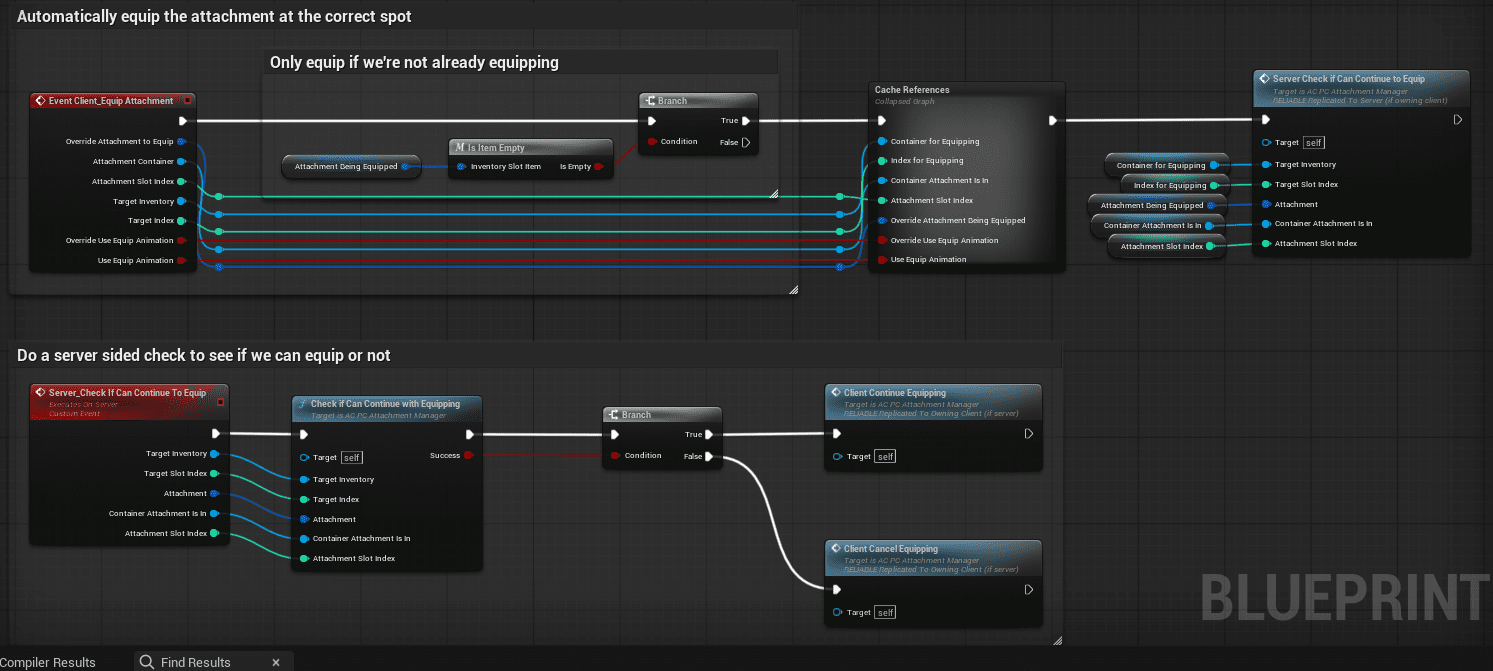

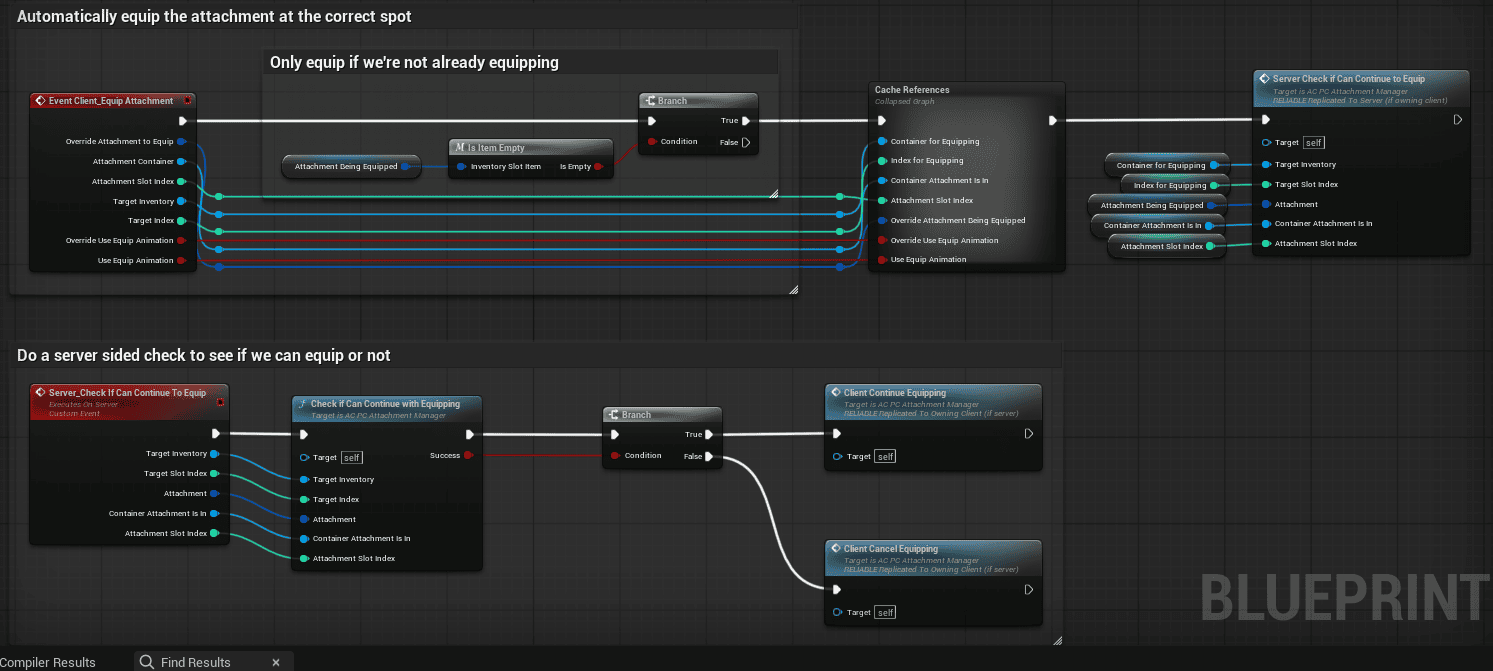

Client entry into the equip pipeline and the server-side validation gate.

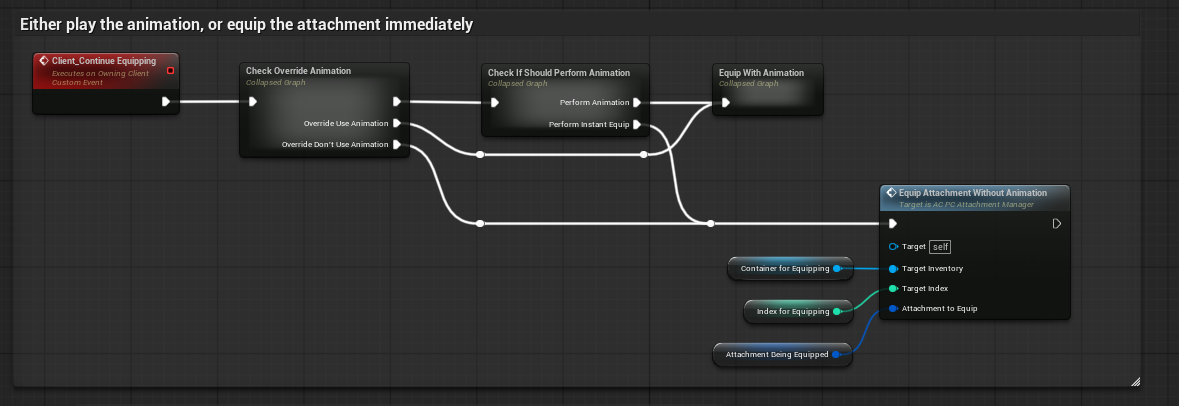

Client Continue Equipping choosing between the animated path and the instant path.

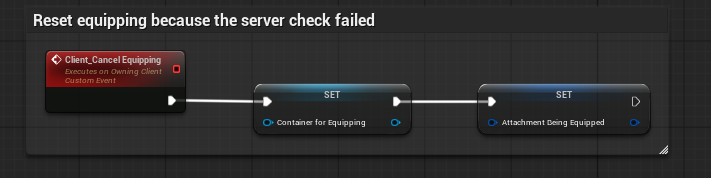

Client Cancel Equipping clearing transient equip state when the validation gate fails.

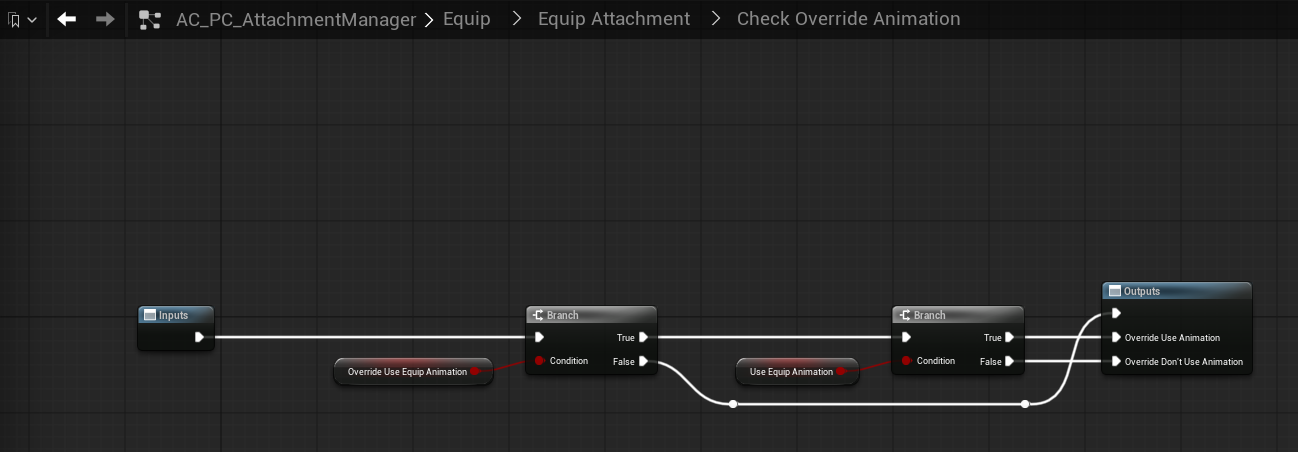

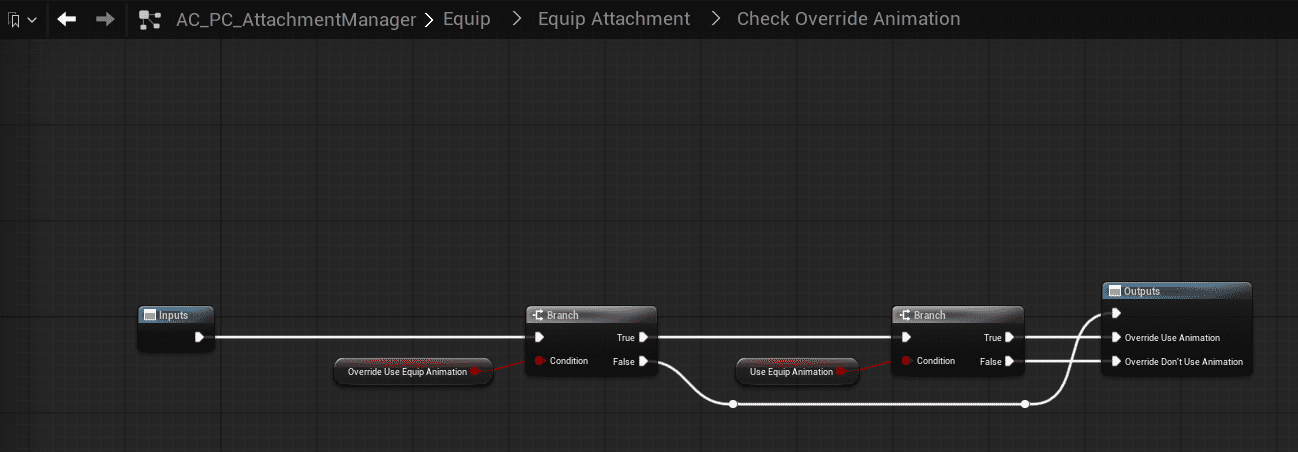

Override animation logic. When override is enabled, the operation honours the explicit Use Equip Animation flag.

---

Equip with animation #

The animated path is the more presentation-friendly branch. The manager reads the attachment info, resolves the equip and unequip montages from F_Weapon_Attachment, async-loads those assets, and plays the relevant montage through the replication or animation component. Before the notify fires, it already spawns the visual attachment on the server but with visibility disabled. This allows the visual actor to exist and be attached in the correct place without appearing too early.

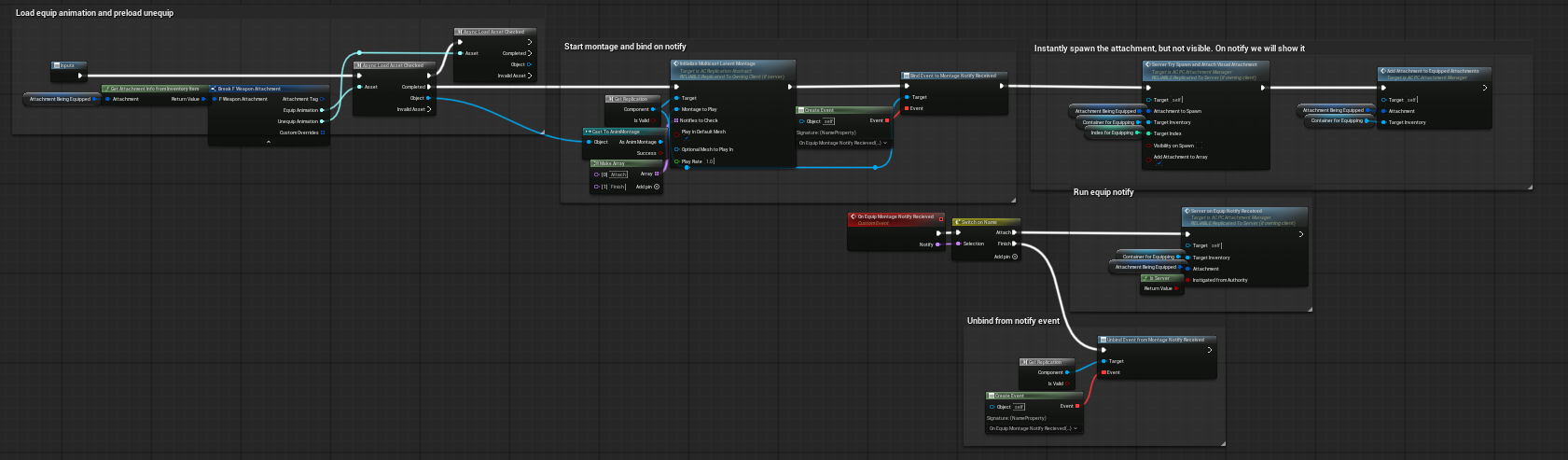

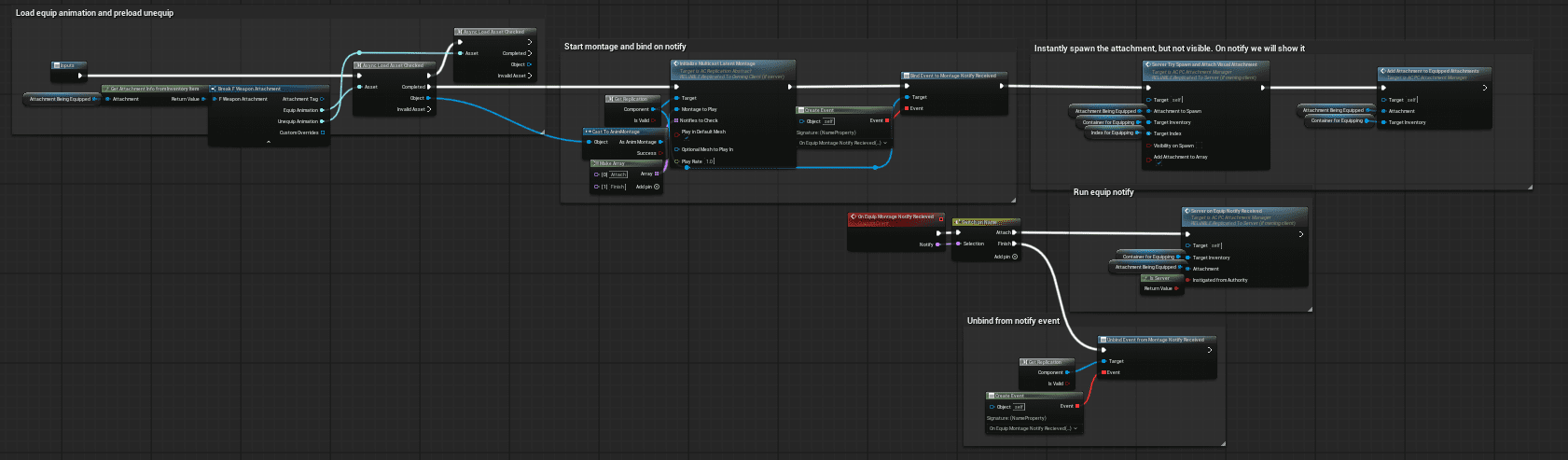

Equip With Animation loading the montage, binding to notify, spawning the attachment hidden, and waiting for the equip notify.

When the montage notify is received, the manager resolves the attachment type, finds the attached visual actor by type, switches its mesh visibility on, and then finalises the operation. This is the key reason the animated path feels correct in presentation: the logical item can be prepared ahead of time, but the visible mesh is only revealed at the notify moment.

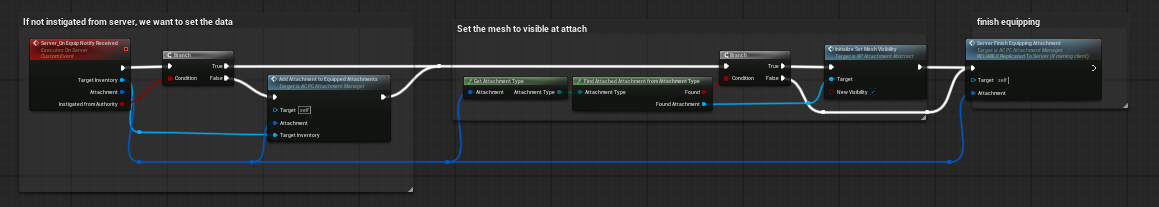

Server On Equip Notify Received making the mesh visible and finalising the equip.

---

Equip without animation #

The instant path is intentionally simpler. It adds the attachment into the equipped state, resolves the owning inventory or equipment context, spawns and attaches the visual actor with visibility on immediately, and then calls the same notify-received completion path. This makes the instant branch fast while still sharing the same end-of-operation logic.

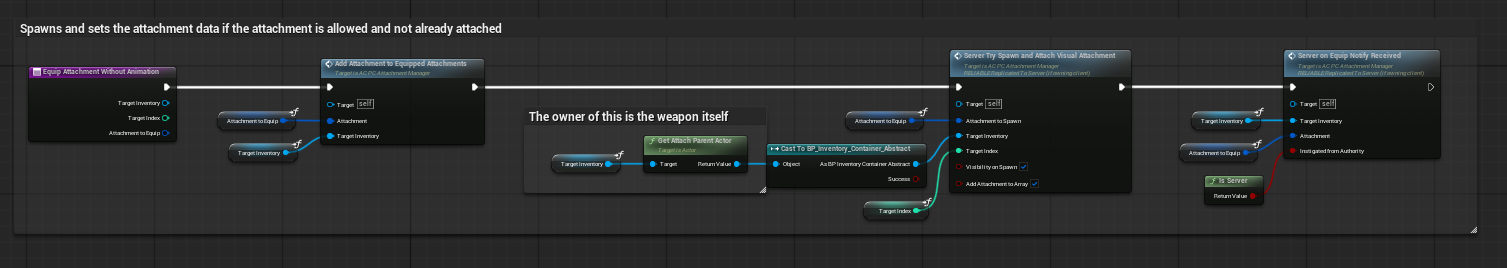

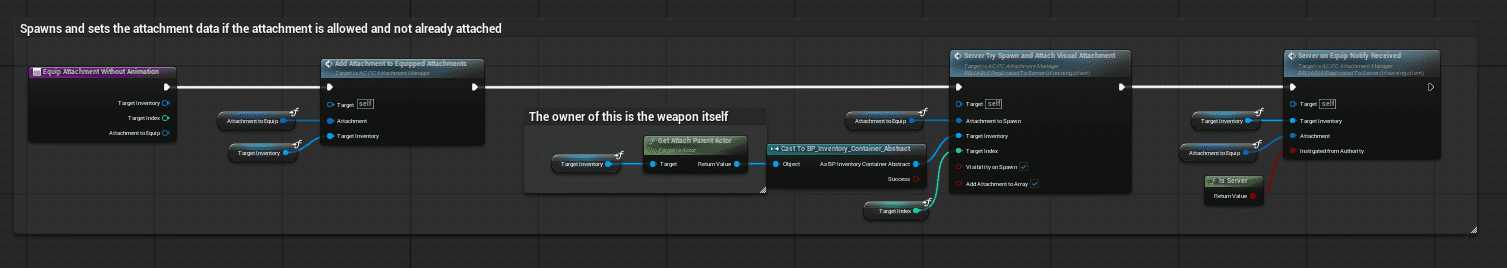

Equip Attachment Without Animation immediately adding logical state, spawning the visible attachment actor, and flowing into the same finish path.

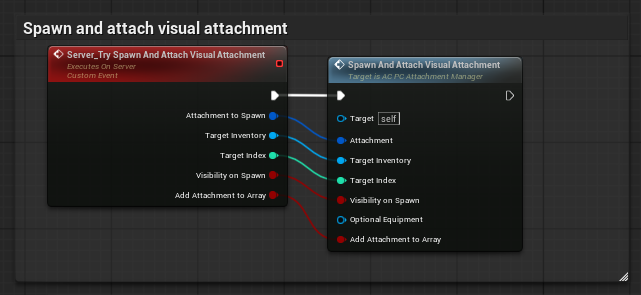

Server wrapper for spawning and attaching the visual attachment actor.

---

Finishing and resetting the equip #

Once the operation completes, the manager calls its attachment-added-or-removed event or dispatcher and then resets the cached equip state. The reset clears the attachment being equipped, the cached target container, and the target index. This is what allows later equip requests to proceed cleanly.

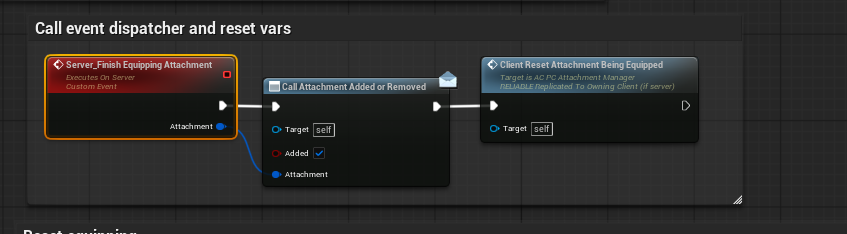

Server Finish Equipping Attachment.

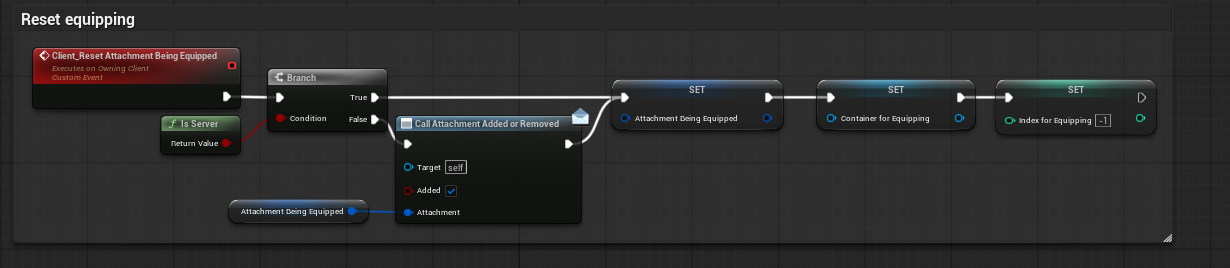

Client reset of the transient equip state once the operation is complete.

---

Remove and unequip flow #

The remove side was not exhaustively inspected node-by-node to the same depth as the add side, but the available function and graph lists make the intended pattern clear. The manager has explicit Remove Attachment From Equipped Attachments, Try Remove Attachment From Inventory, Remove Attachment Type From Attachments, Try Destroy Attached Attachment, and dedicated unequip event graph sections. Based on that structure, the remove side mirrors the add path: it validates the operation, updates logical attachment state, cleans up the spawned visual actor, and resets the temporary unequip variables. This is consistent with the naming, graph groups, and the observed add-side implementation.

Remove-attachment entry events on the loadout side. The live attachment manager exposes its own mirrored remove and unequip function groups as well.

---

BP_ATTACHMENT_BASE Explained #

BP_Attachment_Base is the concrete visual attachment actor. It is a child of the abstract BP_Attachment_Abstract, which exists only as the contract and does not hold gameplay logic. The base actor's job is to materialise the attachment visually from data, choose the correct mesh mode, respond to visibility changes, and destroy itself cleanly when the owning equipment is destroyed.

---

BeginPlay and owner cleanup #

On authority, the base actor binds to the owner equipment's OnDestroyed event. If the equipment goes away, the attachment actor destroys itself. In the same startup flow it reads attachment data from the backing inventory item, breaks F_Weapon_Attachment, decides whether the attachment should use the skeletal mesh or static mesh path, destroys the unused component, and stores the surviving component as the active MeshComponent.

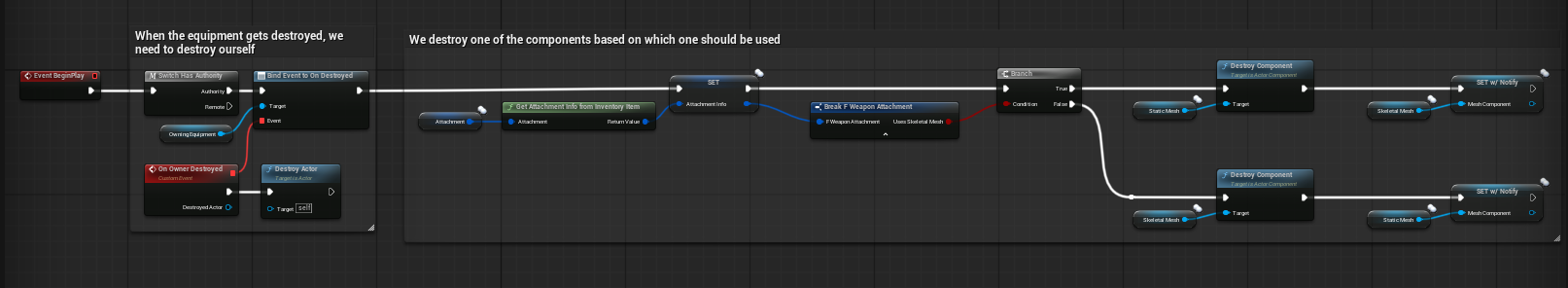

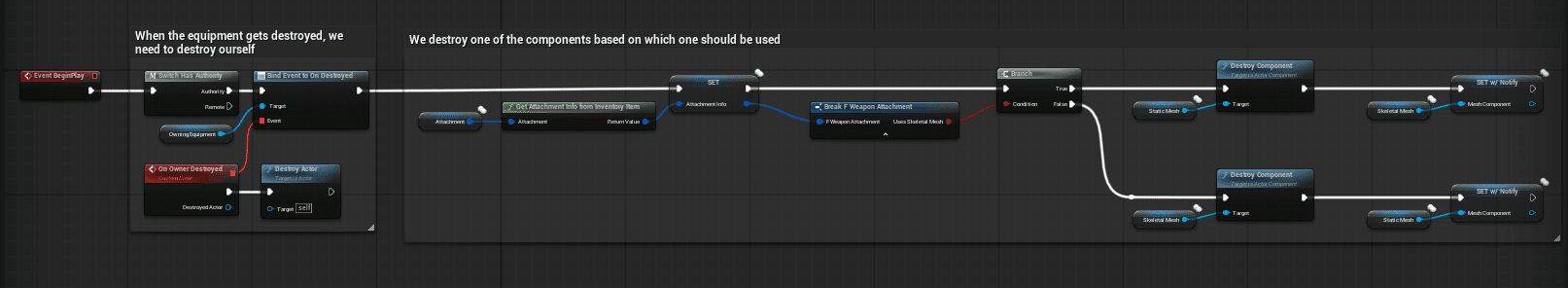

BP_Attachment_Base BeginPlay selecting the correct mesh mode and binding cleanup to the owner equipment's destroy event.

---

Loading and assigning the mesh #

The visual asset is not hard-coded into the blueprint. BP_Attachment_Base reads the mesh references from the F_Weapon_Attachment data, async-loads the correct asset, casts the active MeshComponent to the expected component class, and then assigns the mesh. Static mesh attachments use Set Static Mesh. Skeletal attachments use Set Skinned Asset and Update.

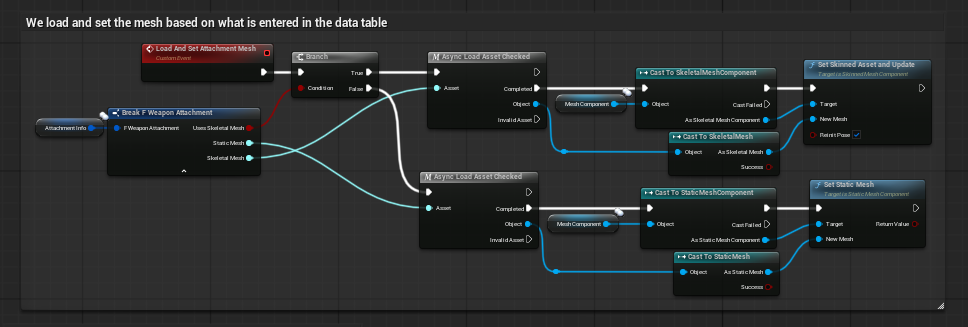

Load And Set Attachment Mesh reading the mesh asset from data and assigning it to the correct component type.

---

Visibility replication #

The base actor also exposes a visibility path. A local initialiser sets the mesh visibility immediately on self and, where required, calls a server RPC so the same visibility state is applied for everyone. This is the mechanism used by the attachment manager when it spawns an attachment hidden first for animated equipping and then reveals it at the montage notify.

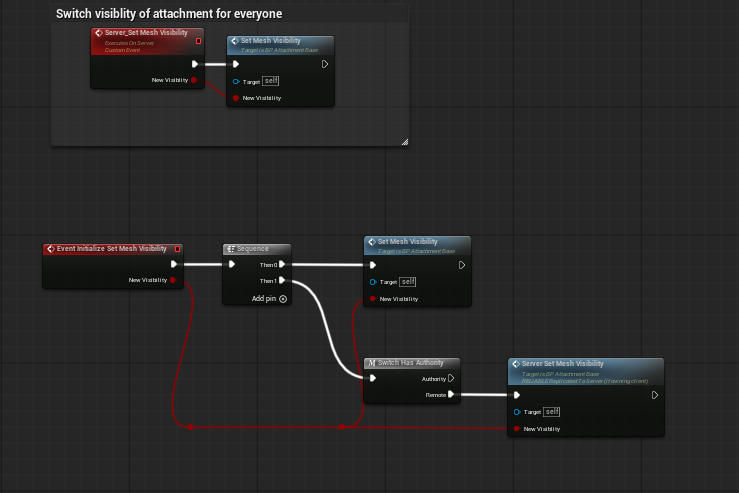

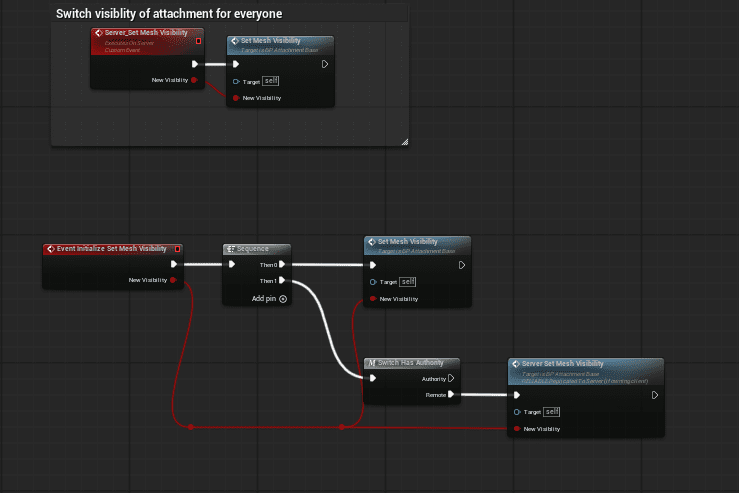

Visibility path for BP_Attachment_Base.

---

What the base actor deliberately does not own #

BP_Attachment_Base is not the system brain. It does not decide whether an attachment is legal, whether inventory ownership is satisfied, or whether a loadout should apply now or after respawn. Those responsibilities belong to the managers. The base actor's responsibility is the visual and local data-facing side: mesh selection, mesh assignment, visibility, and owner-linked cleanup.

---

Creating Custom Attachments #

A major strength of the system is that the generic base actor can be extended when a particular attachment needs custom behaviour. The data table decides what class to spawn, so an attachment row can point either to the fully generic BP_Attachment_Base or to a specialised child blueprint.

---

Example: flashlight attachment #

The supplied child example shows a flashlight blueprint that inherits from the base attachment actor. It runs Parent BeginPlay, checks whether flashlight alignment should be used, enables ticking when needed, and on Tick traces from the active camera while the weapon is aiming. It then calculates a look-at rotation from the spotlight location to either the hit location or trace end and rotates the spotlight component accordingly.

• The generic load, visibility, and owner-cleanup behaviour still comes from the base attachment actor.
• The child adds only the bespoke behaviour specific to that attachment type.
• This pattern is ideal for flashlights, lasers, scopes, underbarrel devices, or any future attachment that needs custom runtime logic.

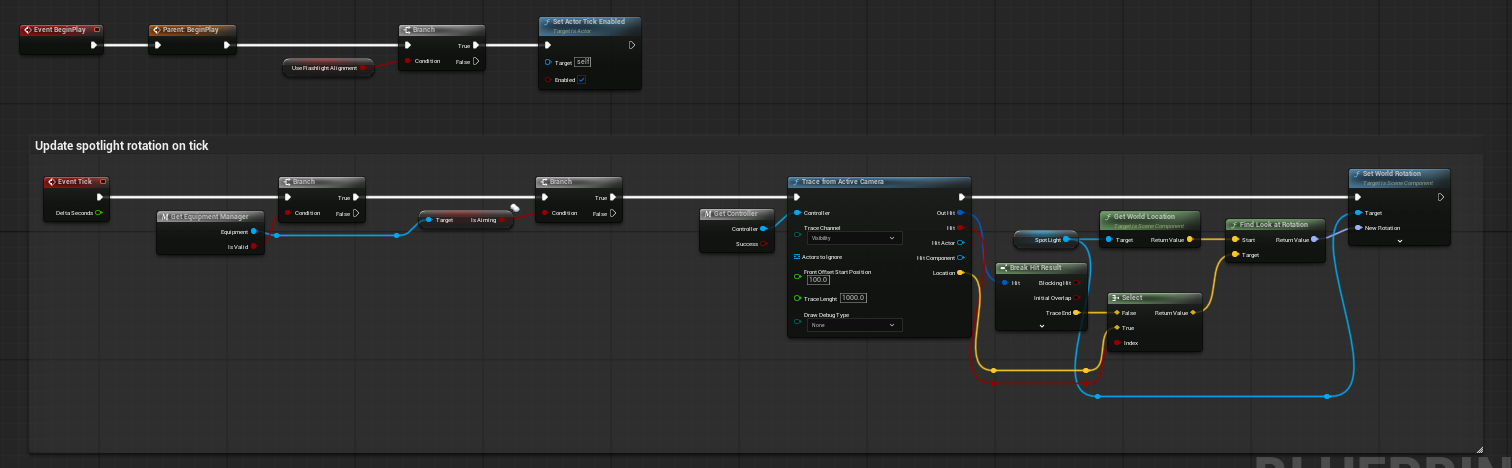

Example child blueprint implementation for a flashlight attachment, dynamically aligning a spotlight to the player's current aim trace.

---

Recommended extension pattern #

When building a new specialised attachment, keep the generic concerns in the base class and only add the behaviour unique to that item. Examples include laser endpoint calculation, scope-specific camera logic, suppressor-specific audio or FX overrides, or an underbarrel attachment that exposes alternate-fire behaviour. As long as the child still respects the same actor contract and is referenced by the DT_Attachments row, the rest of the system does not need to change.

---

Networking and Runtime Authority #

The supplied implementation is clearly server-authoritative in its important gameplay-changing paths. Clients initiate requests, but validation and authoritative state changes occur through server RPCs.

• Loadout application uses server events such as Server_Apply Loadout and Server_Equip Loadout.
• Attachment equipping uses server validation before the client is allowed to continue the presentation branch.
• Visual attachment spawning is requested on the server.
• Visibility changes can be forwarded to the server so they replicate correctly for everyone.
• The managers also expose client events for menu flow and presentation, such as opening the loadout menu or resetting transient equip state.

One useful distinction in the implementation is the split between logical state and visual state. The loadout manager and attachment manager handle logical state. BP_Attachment_Base handles the final visual actor. This is why the system can spawn a hidden visual actor first, then reveal it at the correct montage notify without confusing the logical inventory/equipment state.

---

Demo Level Notes and Usage Patterns #

The demo boards supplied with the system are helpful because they expose the intended ways a buyer is expected to test the framework.

• Open the loadout menu directly from UI, from begin play, or from an interaction prompt.
• Toggle between inventory-owned attachment mode and fully predefined loadout mode.
• Walk over the interaction pad to receive a rifle, then pick up an attachment item and let it equip automatically.
• Right-click on the equipment item to open the edit-attachments screen from the inventory or equipment flow.
• Use the loadout screen to swap allowed attachments and observe assigned attribute differences in the UI.

Demo 'Try it out' board describing the direct pickup, right-click editing, and inventory-mode testing flow.

Demo Attachment Manager explanation board.

The demo also calls out one important caveat: in editor, when testing with two clients that share the same save game, weird behaviour may appear if both clients equip the same loadout. The board explicitly notes that this is not expected to be a problem in a built game. In other words, the strange behaviour is a test-environment save-sharing side effect rather than evidence that the loadout manager is conceptually flawed.

---

Implementation Notes and Known Behaviours #

• The attachment abstract class does not hold gameplay logic; BP_Attachment_Base is the first concrete attachment actor.
• The loadout manager is controller-owned in the sample because loadouts are player-specific and persist across the whole session.
• The loadout UI uses a client-only visual equipment actor to represent attachments in the menu.
• Assigned Attributes are data-driven and are read into the loadout UI, but a project still needs to implement the actual receiving-side behaviour for any custom attribute effects beyond the sample examples.
• Loadout changes can be immediate or deferred until respawn depending on the project configuration.
• The live remove and unequip path was not reviewed node-by-node to the same depth as the add path, so the documentation describes its mirrored behaviour based on the available function lists and event structure rather than every exact node.
• Mode-specific game settings can disable the loadout menu entirely for certain game types, such as a battle-royale-style ruleset.

---

Final Summary #

The Weapon Attachment System is a strong example of Hyper's modular pattern. The loadout manager owns saved player choice. The attachment manager owns live runtime attach and unequip flow. The base attachment actor owns the visual attachment instance. DT_Attachments and DT_Equipment provide the data-driven layer that keeps the whole system extensible.

For a shooter project, the system can behave like a fast predefined loadout customiser. For a survival or open-world project, the same architecture can behave like a true inventory-owned equipment customisation system. Because the visual actor is separated from the logical state and because child blueprints can extend the base attachment actor, the system also scales well when a project needs specialised attachment behaviour such as flashlight aiming, laser logic, or future attachment-specific gameplay.

In practical terms, the system is already divided into the right responsibilities: definition, validation, save-backed selection, runtime application, and visual representation. Once a project's equipment tables, attachment rows, and UI entry points are wired in, the framework provides a clean foundation for both menu-driven and world-driven weapon customisation.
