• OVERVIEW

This documentation explains the Team Manager System, which provides team-based gameplay functionality including automatic team assignment, team balancing, lobby team persistence, and free-for-all support.

What Is the Team Manager?:

The Team Manager handles all team-related logic in multiplayer sessions. It creates teams, assigns players to teams, balances teams, and integrates with other systems like Player Manager and Score Manager to provide complete team-based gameplay.

Key Features:

• ✅ Team Creation: Automatic or manual team creation
• ✅ Auto-Assignment: Automatically assign players to teams on join
• ✅ Team Balancing: Balance teams based on player count
• ✅ Lobby Persistence: Save teams from lobby, restore in gameplay
• ✅ Free For All: Single-team mode for FFA games
• ✅ Team Capacity: Max teams, max members per team
• ✅ Balance Rules: Maximum balance difference between teams
• ✅ AI Support: Assign AI to teams, remove AI when players join
• ✅ Team Switching: Manual team selection (via Interaction Pads or custom UI)
• ✅ Team Colors: Own team vs opposite team colors
• ✅ Integration: Works with Player Manager, Score Manager, Game Mode System

Use Cases:

• Team-based shooters (Team Deathmatch, Search and Destroy)
• Objective-based games (Domination, Capture the Flag)
• Free for all games (all players on one team)
• Battle royale squads (multiple teams)
• Lobby team selection with persistence to gameplay

Prerequisites #

Player Manager Required #

CRITICAL: Team Manager requires Player Manager.

Setup Order:

1. Set up Player Manager (see Player Manager documentation)
2. Set up Team Manager (this documentation)

Why Player Manager Required:

• Team Manager binds to Player Manager's join/leave events
• Team Manager needs connected players list
• Team Manager assigns players when they join

Without Player Manager:

• Team Manager cannot detect player joins
• Cannot assign players to teams
• Cannot track team members

Component Order (GameState):

1. AC_SessionManager
2. AC_ScoreManager (optional)
3. AC_TeamManager ← Binds to Player Manager events
4. AC_PlayerManager ← MUST be bottom (see Player Manager docs)

Related Systems #

Systems That Integrate with Team Manager:

Player Manager (required, separate documentation):

Provides:

• Player join/leave/rejoin events
• Connected players list
• Player tracking

Team Manager uses:

• Bind to OnPlayerJoined to assign teams
• Bind to OnPlayerDropped to remove from teams
• Bind to OnPlayerRejoined to restore teams

Score Manager (optional, separate documentation):

Provides:

• Team score tracking
• Player score tracking

Team Manager provides:

• Team structure for scoring
• Team member lists

Score Manager handles all score tracking.

Team Manager only provides team data.

Game Mode System (optional, separate documentation):

Uses Team Manager for:

• Team-based game modes (Team Deathmatch, Domination, etc.)
• Win condition checking (which team won)
• Team-based spawning

Team Manager provides:

• Team assignments
• Team member lists

Session Manager (optional, separate documentation):

Integration:

• Lobby system with team selection
• Team persistence from lobby to gameplay
• Via Game Instance storage

---

Core concepts #

What Is the Team Manager? #

The Team Manager is a centralized system for managing teams in multiplayer games.

Why Teams?:

Without Teams:

• Free for all only
• No team-based objectives
• No team scoring
• Manual player grouping

With Teams:

• Team-based gameplay
• Team scoring
• Automatic assignment and balancing
• Team colors and identification
• Lobby team persistence

How It Works #

Team Lifecycle:

1. Team Creation:

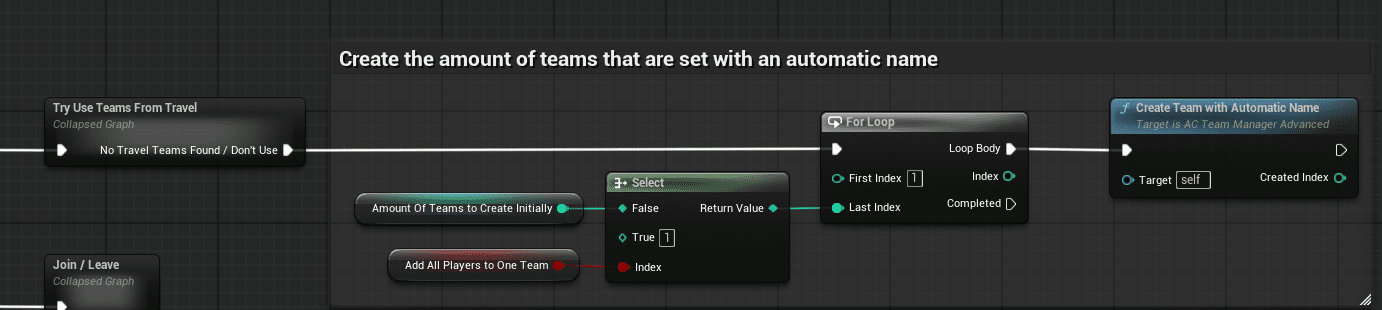

 - Initial: Create teams on level load (if configured)
 - On-Demand: Create team when first player joins (if no teams exist)
 - Manual: Create teams via code/interaction

1. Player Assignment:

 - Player joins session
 - Team Manager detects join (via Player Manager event)
 - If auto-assign enabled: Assign to team (balanced or first-available)
 - If auto-assign disabled: Player unassigned (manual selection needed)

1. Team Balancing:

 - Automatic: Balance on assignment (if enabled)
 - Manual: Call BalanceTeams() to redistribute
 - Rules: Respect max balance difference, max team members

1. During Gameplay:

 - Players remain on teams
 - Team switching (manual, via Interaction Pads or UI)
 - AI added to teams, removed when players join

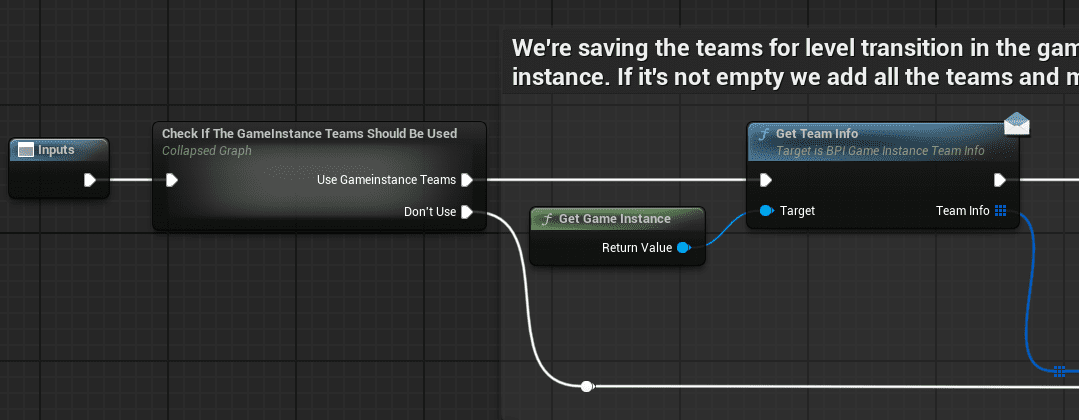

1. Lobby Persistence:

 - Lobby: Players select teams
 - Teams saved to Game Instance
 - Gameplay Level: Teams restored from Game Instance
 - Teams persist across multiple games in playlist

Configuration:

• Amount of Teams to Create Initially: 2
• Max Team Members: 8
• Auto-Assign: True
• Balance Teams: True
• Max Balance Difference: 1

Flow:

1. Level loads → Team Manager creates Team A and Team B
2. Player 1 joins → Assigned to Team A (first team)
3. Player 2 joins → Assigned to Team B (balance)
4. Player 3 joins → Assigned to Team A (balance: A=1, B=1, now A=2, B=1)
5. Player 4 joins → Assigned to Team B (balance: A=2, B=1, now A=2, B=2)
6. Game plays → Teams remain
7. Player 1 leaves → Removed from Team A (A=1, B=2)
8. New player joins → Assigned to Team A (balance)

Team-Based vs Free For All #

Team-Based Mode:

Configuration:

• Amount of Teams to Create Initially: 2+
• Add All Players to One Team: False

Behavior:

• Multiple teams created
• Players assigned across teams
• Team vs team gameplay
• Team scoring

Use Cases:

• Team Deathmatch
• Domination
• Capture the Flag
• Search and Destroy

Free For All Mode:

Configuration:

• Add All Players to One Team: True
• Allow Friendly Fire: True

Behavior:

• One team created
• All players assigned to same team
• Everyone is an enemy (despite same team)
• Individual scoring (not team scoring)

Use Cases:

• Free For All
• Gun Game
• Solo battle royale

Why Same Team:

• Scoreboard UI requires teams
• Team Manager provides structure
• FFA Game Mode uses different win logic (individual, not team)
• Friendly fire enabled so teammates can damage each other

4 AC_TEAMMANAGER

Component Name: AC_TeamManager

Location: GameState

Component Location #

Where to Add:

Component: AC_TeamManager

Location: GameState blueprint

Why GameState:

• Server-authoritative
• Accessible to all players
• Persists across level transitions
• Manages global team state

Component Order:

1. AC_SessionManager
2. AC_ScoreManager (if used)
3. AC_TeamManager ← Binds to Player Manager events
4. AC_PlayerManager ← MUST be bottom (see Player Manager docs)

Team Manager must be ABOVE Player Manager to bind to events.

Core Functionality #

What AC_TeamManager Provides:

Team Management:

• Create teams (initial, on-demand, manual)
• Delete teams
• Assign players to teams
• Remove players from teams
• Balance teams

Player Tracking:

• Track team members per team
• Detect player joins/leaves (via Player Manager)
• Assign/remove automatically

AI Support:

• Assign AI to teams
• Remove AI when players join (if teams full)

Lobby Persistence:

• Save teams to Game Instance
• Load teams from Game Instance
• Persist teams across games

Configuration:

• Max teams
• Max team members
• Balance rules
• Auto-assignment
• Team colors

Events:

• OnTeamInfoChanged (player assigned/removed)
• OnPlayerJoinedButFullTeams (all teams full)

Configuration Variables #

Team Manager Settings:

Maximum Teams (Integer):

• Maximum number of teams allowed
• Configurable

Amount of Teams to Create Initially (Integer):

• How many teams to create on level load
• Range: 0-Maximum Teams
• Configurable
• If 0: Teams created on-demand when players join

Automatically Assign New Players to Team (Boolean):

• Assign players to teams when they join?
• Configurable
• If false: Players must manually select team

Maximum Team Members (Integer):

• Max players per team
• Configurable
• Example: 4 for squads, 8 for team games

Maximum Team Balance Difference (Integer):

• Max player count difference between teams
• Configurable
• Example: If 1, Team A can have max 1 more player than Team B
• Only enforced when auto-assigning

Balance Teams (Boolean):

• Balance players when auto-assigning?
• Configurable
• If false: Fill teams in order (Team A full → Team B full → etc.)

Add All Players to One Team (Boolean):

• Free for all mode (all players on one team)
• Configurable
• Override for FFA games

Allow Friendly Fire (Boolean):

• Can teammates damage each other?
• Configurable
• Set to True for FFA mode

Own Team Color (Linear Color):

• Color for your own team
• Used for UI, player outlines, etc.
• Configurable

Opposite Team Color (Linear Color):

• Color for enemy teams
• Used for UI, player outlines, etc.
• Configurable

5 AC_TEAMCOMMUNICATOR

Component Name: AC_TeamCommunicator

Location: PlayerController

Component Location #

Where to Add:

Component: AC_TeamCommunicator

Location: PlayerController blueprint

Why PlayerController:

• Per-player component
• Stores individual player's team index
• Handles team switching UI/input
• Replicated to client

Core Functionality #

What AC_TeamCommunicator Provides:

Team Index Storage:

• Stores player's current team index
• Replicated from server to client
• Quick access without looping teams

Team Switching:

• Server RPC for team switch requests
• Validation handled by Team Manager
• UI integration (custom implementation)

Quick Access:

• Get your own team instantly
• No need to loop all teams
• No need to query Team Manager

Team Index Storage #

Team Index Variable:

Variable: TeamIndex (Integer, Replicated)

Value:

• Index in Team Manager's teams array
• Example: 0 = Team A, 1 = Team B, 2 = Team C
• -1 = Not assigned to any team

Usage:

// Get your team index quickly

TeamIndex = TeamCommunicator->GetTeamIndex()

// Get your team from Team Manager

MyTeam = TeamManager->GetTeamByIndex(TeamIndex)

• No looping through all teams
• Instant access to own team
• Replicated automatically

---

Team structure #

Struct_TeamInfo #

Team Data Structure:

Struct Name: Struct_TeamInfo

Fields:

• Team Name (String)
• Team Tag (Gameplay Tag)
• Members (Array of Strings)

Team A:

{

 TeamName: "Team A"
 TeamTag: Team.0
 Members: ["Player1", "Player2", "Player3"]

}

Team B:

{

 TeamName: "Team B"
 TeamTag: Team.1
 Members: ["Player4", "Player5"]

}

Team Data #

Team Name:

Purpose: Human-readable team identifier

Auto-Generated:

• “Team A”, “Team B”, “Team C”, etc.
• Based on team index

Custom:

• Can override with custom names
• “Red Team”, “Blue Team”, “Alpha Squad”, etc.

FFA Override:

• If “Add All Players to One Team” enabled
• Custom name for FFA team

Team Tag:

Purpose: Gameplay tag identifier for team

Predefined Tags:

• Team.0 (Team A)
• Team.1 (Team B)
• Team.2 (Team C)
• Team.3 (Team D)
• Team.4 (Team E)

Maximum Preset:

• 5 teams predefined
• Can add custom tags for more teams

Usage:

• Identify teams in code
• Team-specific logic (spawn points, objectives)
• Filtering actors by team

Members:

Purpose: List of players on this team

Data Type: Array of Strings (player names)

Source:

• Player names from PlayerState->GetPlayerName()
• Same as Player Manager's connected players list

Team A Members: [“Player1”, “Player2”, “Player3”]

Includes:

• Human players
• AI players (if AI assigned to teams)

Team Identification #

How to Identify Teams:

By Index:

• Team 0, Team 1, Team 2, etc.
• Index in teams array
• Fastest access

By Tag:

• Team.0, Team.1, Team.2, etc.
• Gameplay tag matching
• Useful for actor filtering

By Name:

• “Team A”, “Team B”, etc.
• Human-readable
• Useful for UI display

All methods valid, use what fits your needs.

---

Team creation #

Initial Team Creation #

How Initial Creation Works:

Setting: Amount of Teams to Create Initially

On Level Load (BeginPlay):

1. Check “Amount of Teams to Create Initially”
2. If > 0: Create that many teams
3. Teams created with:

 - Auto-generated names ("Team A", "Team B", etc.)
 - Sequential tags (Team.0, Team.1, etc.)
 - Empty members list

Amount of Teams to Create Initially: 2

Result:

• Team A (Team.0, no members)
• Team B (Team.1, no members)

Players assigned later when they join.

When to Use Initial Creation:

Use Initial Creation (e.g., 2):

• Team-based games
• Known team count
• Team Deathmatch, Domination, CTF, etc.

Use No Initial Creation (0):

• Dynamic team count
• On-demand team creation
• Battle royale squads
• Player-created teams

On-Demand Team Creation #

How On-Demand Works:

Setting: Amount of Teams to Create Initially = 0

When Player Joins:

1. Check if any teams exist
2. If no teams exist:

 - Check Maximum Teams > 0
 - If yes: Create one team
 - Assign player to new team

1. If teams exist:

 - Assign to existing team

Configuration:

• Amount of Teams to Create Initially: 0
• Maximum Teams: 4

Flow:

1. Level loads → No teams created
2. Player 1 joins → Create Team A, assign Player 1
3. Player 2 joins → Assign to Team A (balancing may create Team B)
4. Continue until max teams reached

Result: Teams created as needed.

Manual Team Creation #

Creating Teams Manually:

You can create teams manually via code:

Function: CreateTeam(TeamName, TeamTag)

Usage:

TeamManager->CreateTeam(“Red Team”, Team.Custom.Red)

Limits:

• Cannot exceed Maximum Teams
• Must have valid tag
• Name can be custom

Use Cases:

• Custom team names
• Player-created squads
• Dynamic team systems

Maximum Teams Limit #

How Maximum Teams Works:

Setting: Maximum Teams

Limit:

• Hard cap on number of teams
• Cannot create more teams than this limit

Maximum Teams: 2

• Can have Team A and Team B only
• Cannot create Team C

Maximum Teams: 4

• Can have up to 4 teams (battle royale squads)

Maximum Teams: 0

• No teams allowed
• Team system disabled

When Limit Reached:

If all teams exist and new team creation requested:

• Team creation fails
• Player assigned to existing team (if space available)
• Or “OnPlayerJoinedButFullTeams” event fires (if all teams full)

---

Team assignment #

Automatic Assignment #

How Auto-Assignment Works:

Setting: Automatically Assign New Players to Team = True

When Player Joins:

1. Player Manager fires OnPlayerJoined event
2. Team Manager receives event
3. Check if teams exist:

 - If no teams: Create team (if max teams > 0)

1. Assign player to team:

 - If "Balance Teams" enabled: Assign to least-filled team
 - If "Balance Teams" disabled: Assign to first team with space

1. Update team members list
2. Set player's team index (in Team Communicator)
3. Fire OnTeamInfoChanged event

Player automatically on team, no manual selection needed.

Manual Assignment #

How Manual Assignment Works:

Setting: Automatically Assign New Players to Team = False

When Player Joins:

1. Player joins session
2. Team Manager detects join
3. Player NOT assigned to any team
4. Player must manually select team:

 - Via Interaction Pads (example level)
 - Via custom UI
 - Via code

Use Cases:

• Lobby team selection
• Player choice
• Competitive matchmaking (team preference)

Manual Assignment Methods:

Interaction Pads (example level):

Physical objects in level:

• “Join Team A” trigger volume
• “Join Team B” trigger volume
• etc.

Player walks over trigger:

• Request team assignment
• Server validates
• Player assigned to team

Custom UI:

Team selection menu:

• Show available teams
• Show team sizes
• Player clicks team
• Team Communicator sends RPC to server
• Server validates and assigns

Assignment Logic #

Balanced Assignment (Balance Teams = True):

Algorithm:

1. Get all teams
2. Find team with fewest members
3. Check capacity:

 - Team not at max members?
 - Adding player respects max balance difference?

1. If valid: Assign to this team
2. If not valid: Try next team
3. If no valid team: Check if can remove AI
4. If AI removed: Assign player to that team
5. If no space: Fire OnPlayerJoinedButFullTeams event

Team A: 3 players

Team B: 5 players

Max Balance Difference: 1

New player joins:

• Team A has fewest (3)
• Adding to Team A: A=4, B=5 (difference = 1, OK)
• Assign to Team A

Result: Team A: 4, Team B: 5

First-Available Assignment (Balance Teams = False):

Algorithm:

1. Get all teams in order (Team A, Team B, etc.)
2. Find first team with space (not at max members)
3. Assign to that team

Team A: 8/8 (full)

Team B: 3/8

New player joins:

• Team A full, skip
• Team B has space
• Assign to Team B

Result: Team A: 8, Team B: 4

Fills teams in order, no balancing.

AI Assignment #

How AI Assignment Works:

Same Logic as Players:

When AI spawns (via Game Mode System):

1. Team Manager detects AI join (same as player join)
2. Assign AI to team using same logic:

 - Balanced or first-available
 - Respect max members
 - Respect max balance difference

1. AI added to team members list
2. AI has team index

Team A: 2 players, 3 AI (5 total)

Team B: 3 players, 2 AI (5 total)

AI and players treated equally for team assignment.

---

Team balancing #

Balance on Assignment #

How Balance Works:

Setting: Balance Teams = True

When Enabled:

• Players assigned to least-filled team
• Maintains even team sizes
• Respects max balance difference

When Disabled:

• Players assigned to first team with space
• Teams fill in order
• No balancing logic

Maximum Balance Difference #

How Balance Difference Works:

Setting: Maximum Team Balance Difference

Purpose:

• Prevent one team from being much larger
• Enforce fairness

How It Works:

When assigning player to team:

1. Calculate difference between teams
2. If adding player exceeds max difference: Block
3. If within difference: Allow

Max Balance Difference: 1

Team A: 4 players

Team B: 3 players

Difference: 1 (OK)

New player joins:

• Can add to Team A? A=5, B=3, diff=2 (NO, exceeds limit)
• Can add to Team B? A=4, B=4, diff=0 (YES)
• Assign to Team B

Result: Team A: 4, Team B: 4

Max Balance Difference: 2

Team A: 4 players

Team B: 3 players

New player joins:

• Can add to Team A? A=5, B=3, diff=2 (YES, equals limit)
• Can add to Team B? A=4, B=4, diff=0 (YES)
• Assign to Team B (balance prefers least-filled)

Result: Team A: 4, Team B: 4

Only Applies to Auto-Assignment:

Balance difference only enforced when:

• Automatically Assign New Players to Team = True
• Player joins and auto-assigned

Balance difference NOT enforced when:

• Manual assignment (Interaction Pads, UI)
• Manual team switching
• You can manually override if needed

Force Rebalance #

What Is Force Rebalance:

Function: BalanceTeams()

Purpose:

• Redistribute all players evenly across teams
• Fix imbalanced teams

When to Use:

• Teams become imbalanced (many leaves/joins)
• After manual assignments
• Before game start

How It Works:

1. Get all players across all teams
2. Calculate even distribution
3. Redistribute players:

 - Move players from large teams to small teams
 - Achieve even sizes

1. Update team members lists
2. Update player team indices
3. Fire OnTeamInfoChanged events

Before Rebalance:

Team A: 7 players

Team B: 1 player

Total: 8 players

Call BalanceTeams():

After Rebalance:

Team A: 4 players

Team B: 4 players

Total: 8 players (evenly distributed)

Balance Algorithm #

How Balancing Works:

Balanced Assignment:

1. Sort teams by member count (least to most)
2. Assign player to team with fewest members
3. Check max balance difference
4. If valid: Assign
5. If not: Try next team

Force Rebalance:

1. Count total players across all teams
2. Calculate even distribution:

 - TotalPlayers / NumberOfTeams = PlayersPerTeam

1. Move players from large teams to small teams
2. Continue until all teams balanced

Goal: All teams have equal or near-equal player counts.

---

Team capacity #

Maximum Team Members #

How Max Members Works:

Setting: Maximum Team Members

Purpose:

• Limit team size
• Prevent one team from being too large

How It Works:

When assigning player to team:

1. Check team's current member count
2. If count >= Maximum Team Members: Team full, cannot add
3. If count < Maximum Team Members: Can add

Maximum Team Members: 8

Team A: 8 players (full)

Team B: 5 players

New player joins:

• Cannot add to Team A (full)
• Add to Team B (has space)

Result: Team A: 8, Team B: 6

Maximum Teams #

How Max Teams Works:

Setting: Maximum Teams

Purpose:

• Limit number of teams
• Control game structure

How It Works:

When creating team:

1. Count existing teams
2. If count >= Maximum Teams: Cannot create more teams
3. If count < Maximum Teams: Can create

Maximum Teams: 2

Existing: Team A, Team B

Try to create Team C:

• Count: 2 teams
• Max: 2 teams
• Cannot create Team C (limit reached)

Full Teams Handling #

What Happens When All Teams Full:

Scenario:

• All teams at Maximum Team Members
• New player joins

Process:

1. Team Manager tries to assign player
2. All teams full
3. Check if AI on teams:

 - If AI exists: Remove AI, add player (see next section)
 - If no AI: Cannot assign player

1. Fire OnPlayerJoinedButFullTeams event
2. Player remains unassigned

Event: OnPlayerJoinedButFullTeams

• Notifies that player joined but couldn't be assigned
• You can handle this:

 - Kick player ("Server full")
 - Queue player (spectator mode)
 - Create new team (if under max teams)
 - Custom logic

AI Removal for Players #

How AI Removal Works:

Scenario:

• All teams full (at max members)
• New real player joins
• AI on teams

Process:

1. Team Manager checks for AI on teams
2. Find first team with AI
3. Remove AI from that team:

 - AI removed from members list
 - AI disconnected from game

1. Add real player to that team:

 - Player takes AI's spot
 - Team size stays same

1. Update team indices
2. Fire OnTeamInfoChanged event

Before:

Team A: 4 players, 4 AI (8/8 full)

Team B: 5 players, 3 AI (8/8 full)

Real player joins:

1. Both teams full
2. AI found on Team A
3. Remove 1 AI from Team A
4. Add player to Team A

After:

Team A: 5 players, 3 AI (8/8)

Team B: 5 players, 3 AI (8/8)

Real player prioritized over AI.

---

Lobby team persistence #

How Lobby Teams Work #

Lobby to Gameplay Flow:

Use Case:

• Lobby level with team selection
• Players choose teams in lobby
• Play multiple games in playlist
• Teams persist across games

Flow:

1. Lobby Level:

 - Team Manager creates teams
 - Players select teams (Interaction Pads or UI)
 - Teams saved to Game Instance

1. Travel to Gameplay Level:

 - Session Manager loads gameplay level
 - Teams restored from Game Instance
 - Players remain on same teams

1. Game Ends:

 - Session Manager loads next game in playlist
 - Teams STILL restored from Game Instance
 - Players stay on same teams

1. Continue:

 - Play multiple games
 - Teams persist across all games
 - Until session ends or manually cleared

Game Instance Storage #

How Game Instance Storage Works:

Data Stored: Full team data (Struct_TeamInfo array)

What's Saved:

• Team names
• Team tags
• Team members (player names)
• All teams

When Saved:

• When leaving lobby level
• When traveling to gameplay level
• Automatically by Session Manager / Team Manager

When Loaded:

• When entering gameplay level
• On Team Manager BeginPlay
• Checks Game Instance for team data
• If exists: Load and restore
• If not: Create teams normally

Loading Teams in Gameplay #

How Teams Are Restored:

On Gameplay Level Load (Team Manager BeginPlay):

1. Check Game Instance for team data
2. If team data exists:

 - Load team data from Game Instance
 - Create teams with loaded data:
 - Same team names
 - Same team tags
 - Same team members
 - Assign players to their previous teams
 - Teams restored exactly as they were

1. If no team data:

 - Create teams normally (initial creation or on-demand)

Lobby:

• Team Red: Player1, Player2, Player3
• Team Blue: Player4, Player5

Gameplay Level 1:

• Teams restored: Red (1,2,3), Blue (4,5)

Gameplay Level 2 (next game):

• Teams STILL restored: Red (1,2,3), Blue (4,5)

Players stay on same teams across all games.

Team Persistence Across Games #

How Persistence Works:

Saved Until:

• Session ends
• Players disconnect
• Manually cleared (custom implementation)

NOT Cleared:

• After each game
• When loading new level
• Automatically

If You Want to Clear Teams:

• Implement custom logic
• Clear Game Instance team data
• Reset teams after each game

Playlist: Map A → Map B → Map C

Map A: Teams created/selected

Map B: Teams restored (same teams)

Map C: Teams STILL restored (same teams)

All maps use same team assignments.

---

Free for all mode #

Single Team Mode #

What Is Single Team Mode:

Setting: Add All Players to One Team = True

Purpose:

• Free for all gameplay
• All players on same team
• Everyone is an enemy

How It Works:

1. One team created (or all players added to Team A)
2. All players assigned to same team
3. Scoreboard shows all players together
4. Friendly fire enabled (teammates can damage each other)
5. FFA Game Mode uses individual win logic (not team scoring)

FFA Configuration #

Required Settings for FFA:

Team Manager:

• Add All Players to One Team: True
• Allow Friendly Fire: True
• Automatically Assign New Players to Team: True

Game Mode System:

• Use FFA game mode component
• Individual scoring (not team scoring)

Result:

• All players on one team structurally
• But everyone treats each other as enemies
• Individual winner (most kills, etc.)

Friendly Fire Requirement #

Why Friendly Fire Needed:

In FFA:

• All players on same team
• Without friendly fire: Cannot damage teammates
• With friendly fire: Can damage teammates

FFA Flow:

1. All players assigned to Team FFA
2. Friendly fire enabled
3. Players can damage each other (despite same team)
4. Scoreboard shows all players
5. Win based on individual score (not team score)

Why Not Separate Teams:

• Scoreboard requires team structure
• Team Manager provides framework
• FFA game mode overrides team logic
• Simpler implementation

---

Team colors #

Own Team Color #

What Is Own Team Color:

Setting: Own Team Color (Linear Color)

Purpose:

• Color for your own team members
• Visual identification

Default: Blue

Usage:

• Player outlines/highlights
• UI elements
• Nametags
• Team indicators

Opposite Team Color #

What Is Opposite Team Color:

Setting: Opposite Team Color (Linear Color)

Purpose:

• Color for enemy team members
• Visual identification

Default: Red

Usage:

• Enemy player outlines/highlights
• Enemy UI elements
• Enemy nametags
• Enemy indicators

• If 4 teams exist, all non-friendly teams use same enemy color
• Not per-team colors (just friendly vs enemy)

Color Usage #

How Colors Are Used:

Team Manager provides:

• Own Team Color
• Opposite Team Color

Systems can use colors for:

• Player outlines (UI above heads)
• Nametag colors
• Team indicators
• Minimap colors
• Objective colors

GetPlayerColor(PlayerName):

 If PlayerName on my team:
 Return Own Team Color (Blue)
 Else:
 Return Opposite Team Color (Red)

Result:

• Your teammates: Blue outline
• Enemies: Red outline

---

Team switching #

Mid-Game Team Switch #

Can Players Switch Teams:

Yes, team switching is possible:

Methods:

1. Interaction Pads (example level)

 - Physical objects in level
 - Walk over to switch teams

1. Custom UI

 - Team selection menu
 - Click team to switch
 - Team Communicator sends RPC to server

Validation:

• Server validates switch request
• Checks team capacity
• Checks balance rules (if enforced)
• Assigns if valid

Use Cases:

• Player choice
• Balance teams manually
• Switch to play with friends

Interaction Pads #

What Are Interaction Pads:

Physical Objects in Example Level:

Team Selection Zones:

• “Join Team A” trigger volume
• “Join Team B” trigger volume
• etc.

How They Work:

1. Player walks into trigger volume
2. Trigger detects overlap
3. Request team assignment to that team
4. Server validates and assigns

• Spawn area with team selection zones
• Player walks to “Team Red” zone
• Assigned to Team Red
• Player can later walk to “Team Blue” zone
• Switches to Team Blue

Useful For:

• Testing
• Manual team selection
• Non-UI team switching

Server Validation #

How Server Validation Works:

Team Switch Request:

1. Client: Team Communicator sends RPC to server

 - Request team switch to Team B

1. Server: Team Manager validates request

 - Is Team B at max capacity?
 - Does switch violate balance rules? (if enforced)
 - Is player already on Team B?

1. Server: Execute or Reject

 - If valid: Remove from old team, add to new team
 - If invalid: Reject, player stays on current team

1. Server: Update and Replicate

 - Update team members lists
 - Update player's team index (replicated to client)
 - Fire OnTeamInfoChanged event

Server (Team Manager) handles validation.

---

Player join and leave #

Binding to Player Manager #

How Team Manager Binds to Player Manager:

Team Manager BeginPlay:

1. Get Player Manager reference:

 PlayerManager = GetOwner()->FindComponentByClass(AC_PlayerManager)

1. Bind to events:

 PlayerManager->OnPlayerJoined.AddDynamic(this, &ThisClass::HandlePlayerJoin)
 PlayerManager->OnPlayerDropped.AddDynamic(this, &ThisClass::HandlePlayerLeave)
 PlayerManager->OnPlayerRejoined.AddDynamic(this, &ThisClass::HandlePlayerRejoin)

1. Ready to handle player events

This is why Player Manager must be bottom component:

• Team Manager binds on BeginPlay
• Player Manager initializes last
• Team Manager ready to receive events

Player Join Handling #

What Happens When Player Joins:

Player Manager fires OnPlayerJoined:

Team Manager Receives Event:

1. Get player name from event
2. Check “Automatically Assign New Players to Team”

 - If True: Assign to team (balanced or first-available)
 - If False: Skip, manual assignment required

1. If auto-assign:

 - Check if teams exist (create if needed)
 - Find valid team (capacity, balance)
 - Add player to team members list
 - Set player's team index (Team Communicator)
 - Fire OnTeamInfoChanged event

1. Player now on team

Player “John” joins:

1. Player Manager: OnPlayerJoined(“John”)
2. Team Manager: Assign John to Team A
3. Team A members: [“Player1”, “Player2”, “John”]
4. John's team index: 0 (Team A)
5. OnTeamInfoChanged fired

Player Leave Handling #

What Happens When Player Leaves:

Player Manager fires OnPlayerDropped:

Team Manager Receives Event:

1. Get player name from event
2. Find which team player is on
3. Remove player from team members list
4. Update team member count
5. Fire OnTeamInfoChanged event

Player “John” leaves:

1. Player Manager: OnPlayerDropped(“John”)
2. Team Manager: Find John (Team A)
3. Team A members: [“Player1”, “Player2”, “John”] → [“Player1”, “Player2”]
4. OnTeamInfoChanged fired

Player automatically removed, no manual cleanup needed.

Player Rejoin Handling #

What Happens When Player Rejoins:

Player Manager fires OnPlayerRejoined:

Team Manager Receives Event:

1. Get player name from event
2. Check if lobby teams loaded from Game Instance:

 - If yes: Restore player to previous team
 - If no: Assign as new player (auto-assign logic)

1. Add to team members list
2. Set team index
3. Fire OnTeamInfoChanged event

Player “John” disconnects from Game 1:

• Was on Team Red

Player “John” rejoins Game 2:

1. Player Manager: OnPlayerRejoined(“John”)
2. Team Manager: Load teams from Game Instance
3. Restore John to Team Red (previous team)
4. John's team index: Team Red

Player returns to same team.

---

Event dispatchers #

OnTeamInfoChanged #

When Event Fires:

Event: OnTeamInfoChanged

Fires When:

• Player assigned to team
• Player removed from team
• Team members list changes

Data Provided:

• Team index (which team changed)
• Updated team info (Struct_TeamInfo)

Use Cases:

• Update scoreboard (team member lists changed)
• Update team UI (show team rosters)
• Track team changes
• Custom logic on team updates

TeamManager->OnTeamInfoChanged.AddDynamic(this, &ThisClass::HandleTeamChange)

void HandleTeamChange(int TeamIndex, FStruct_TeamInfo TeamInfo)

{

 // Update scoreboard for this team
 UpdateScoreboardTeam(TeamIndex, TeamInfo);

}

OnPlayerJoinedButFullTeams #

When Event Fires:

Event: OnPlayerJoinedButFullTeams

Fires When:

• Player joins session
• All teams at maximum capacity
• No AI to remove
• Player cannot be assigned to any team

Data Provided:

• Player name (string)

Use Cases:

• Kick player (“Server full”)
• Queue player (spectator mode)
• Create new team (if under max teams)
• Notify player (“Waiting for slot”)

TeamManager->OnPlayerJoinedButFullTeams.AddDynamic(this, &ThisClass::HandleFullTeams)

void HandleFullTeams(FString PlayerName)

{

 // Kick player
 PlayerManager->KickPlayer(PlayerName);

 // Or add to spectator queue
 AddToSpectatorQueue(PlayerName);

}

---

Integration with other systems #

Player Manager Integration #

How They Work Together:

Player Manager Provides:

• OnPlayerJoined event
• OnPlayerDropped event
• OnPlayerRejoined event
• Connected players list

Team Manager Uses:

1. Bind to OnPlayerJoined:

 - Assign player to team on join

1. Bind to OnPlayerDropped:

 - Remove player from team on leave

1. Bind to OnPlayerRejoined:

 - Restore player to previous team (lobby persistence)

1. Use connected players list:

 - Verify players still connected
 - Validate team members

Critical Dependency:

• Team Manager REQUIRES Player Manager
• Cannot function without it
• Player Manager must be below Team Manager in component list

Score Manager Integration #

How They Work Together:

Team Manager Provides:

• Team structure (teams array)
• Team members lists
• Team identification

Score Manager Uses:

• Query teams for team scoring
• Calculate team scores (sum of player scores)
• Determine team winners

Team Manager Does NOT:

• Track scores
• Calculate scores
• Determine winners

Score Manager Handles All Scoring:

• Player scores
• Team scores
• Win conditions

See Score Manager documentation for scoring details.

Game Mode System Integration #

How They Work Together:

Team Manager Provides:

• Team assignments
• Team member lists
• Team identification

Game Mode System Uses:

• Team-based game modes (Team Deathmatch, Domination, etc.)
• Team-based spawning (spawn on team spawn points)
• Team-based win conditions (which team won)
• Team-based objectives (capture team flags, etc.)

Team Deathmatch:

• Team Manager assigns players to teams
• Game Mode checks team scores (via Score Manager)
• Game Mode determines winning team

Domination:

• Team Manager provides teams
• Game Mode assigns control points to teams
• Game Mode awards points to teams

See Game Mode System documentation for game mode details.

---

Configuration guide #

Team Manager Settings #

All Configuration Variables:

Maximum Teams:

• Max number of teams
• Configurable

Amount of Teams to Create Initially:

• Teams created on level load
• Configurable
• Range: 0-Maximum Teams

Automatically Assign New Players to Team:

• Auto-assign players on join?
• Configurable

Maximum Team Members:

• Max players per team
• Configurable

Maximum Team Balance Difference:

• Max player count difference
• Configurable

Balance Teams:

• Balance when auto-assigning?
• Configurable

Add All Players to One Team:

• Free for all mode
• Configurable

Allow Friendly Fire:

• Teammates can damage each other?
• Configurable

Own Team Color:

• Color for your team
• Configurable

Opposite Team Color:

• Color for enemy teams
• Configurable

Common Configurations #

Team Deathmatch (2 Teams):

Maximum Teams: 2

Amount of Teams to Create Initially: 2

Automatically Assign New Players to Team: True

Maximum Team Members: 8

Maximum Team Balance Difference: 1

Balance Teams: True

Add All Players to One Team: False

Allow Friendly Fire: False

Free For All:

Maximum Teams: 1

Amount of Teams to Create Initially: 1

Automatically Assign New Players to Team: True

Maximum Team Members: 16

Maximum Team Balance Difference: 0 (ignored in FFA)

Balance Teams: False (only one team)

Add All Players to One Team: True

Allow Friendly Fire: True

Battle Royale Squads (4-player teams):

Maximum Teams: 25 (100 players / 4 per team)

Amount of Teams to Create Initially: 0 (on-demand)

Automatically Assign New Players to Team: True

Maximum Team Members: 4

Maximum Team Balance Difference: 0 (fill teams in order)

Balance Teams: False (fill teams sequentially)

Add All Players to One Team: False

Allow Friendly Fire: False

Lobby with Manual Team Selection:

Maximum Teams: 2

Amount of Teams to Create Initially: 2

Automatically Assign New Players to Team: False

Maximum Team Members: 8

Maximum Team Balance Difference: 1

Balance Teams: False (manual selection, balance not needed)

Add All Players to One Team: False

Allow Friendly Fire: False

---

How to guides #

Setting Up Team Manager #

Step 1 – Add Components: #

On GameState:

1. Open GameState blueprint
2. Add components in order:

 - AC_SessionManager (if used)
 - AC_ScoreManager (if used)
 - AC_TeamManager ← Above Player Manager
 - AC_PlayerManager ← MUST be bottom

1. Verify component order
2. Save

On PlayerController:

1. Open PlayerController blueprint
2. Add component: AC_TeamCommunicator
3. Save

Step 2 – Configure Team Manager: #

In GameState, select AC_TeamManager component:

Set values:

• Maximum Teams: 2 (for Team Deathmatch)
• Amount of Teams to Create Initially: 2
• Automatically Assign New Players to Team: True
• Maximum Team Members: 8
• Maximum Team Balance Difference: 1
• Balance Teams: True
• Add All Players to One Team: False
• Allow Friendly Fire: False
• Own Team Color: Blue
• Opposite Team Color: Red

Save GameState.

Step 3 – Test: #

1. Host session
2. Join with Player 1:

 - Verify assigned to Team A

1. Join with Player 2:

 - Verify assigned to Team B (balance)

1. Join with Player 3:

 - Verify assigned to Team A (balance)

1. Open scoreboard (P key):

 - Verify teams shown
 - Verify players in correct teams

1. Player 1 leaves:

 - Verify removed from Team A
 - Verify scoreboard updates

Creating Custom Teams #

Step 1 – Define Custom Tags: #

In Project Settings or Gameplay Tags:

Add tags:

• Team.Custom.Red
• Team.Custom.Blue
• Team.Custom.Green
• Team.Custom.Yellow

Save.

Step 2 – Create Teams Manually: #

In Team Manager or custom code:

Function: CreateTeam(TeamName, TeamTag)

TeamManager->CreateTeam(“Red Squadron”, Team.Custom.Red)

TeamManager->CreateTeam(“Blue Squadron”, Team.Custom.Blue)

Result:

• Custom named teams
• Custom tags
• Empty members (assign later)

Step 3 – Assign Players: #

Manual assignment:

Function: AssignPlayerToTeam(PlayerName, TeamIndex)

TeamManager->AssignPlayerToTeam(“Player1”, 0) // Red Squadron

TeamManager->AssignPlayerToTeam(“Player2”, 1) // Blue Squadron

Or use auto-assignment with custom teams already created.

Implementing Team Selection UI #

Step 1 – Create Team Selection Widget: #

1. Create widget: WBP_TeamSelection
2. Layout:

 ┌─────────────────────────┐
 │ Select Your Team │
 ├─────────────────────────┤
 │ Team A (3/8) [Join] │
 │ Team B (5/8) [Join] │
 └─────────────────────────┘

1. Add team buttons
2. Show team sizes

Step 2 – Populate Team List: #

In WBP_TeamSelection:

On Widget Constructed:

1. Get Team Manager reference
2. Get all teams:

 AllTeams = TeamManager->GetAllTeams()

1. For each team:

 - Create team button widget
 - Set team name
 - Set team size (members.Num() / MaxMembers)
 - Bind join button

1. Add to list

Step 3 – Implement Join Button: #

On Join Team Button Clicked:

1. Get team index from this button
2. Get Team Communicator reference (on PlayerController)
3. Send RPC to server:

 TeamCommunicator->ServerRequestTeamChange(TeamIndex)

1. Close widget (team assignment handled by server)

In Team Communicator:

ServerRequestTeamChange(TeamIndex):

 1. Get Team Manager
 2. Remove player from current team
 3. Assign player to new team (TeamIndex)
 4. Validate capacity/balance
 5. Update team members
 6. Replicate team index to client

Step 4 – Update UI on Team Change: #

Bind to OnTeamInfoChanged:

TeamManager->OnTeamInfoChanged.AddDynamic(this, &ThisClass::RefreshTeamList)

void RefreshTeamList(int TeamIndex, FStruct_TeamInfo TeamInfo)

{

 // Update team button for this team
 UpdateTeamButton(TeamIndex, TeamInfo.Members.Num());

}

Result: UI updates when teams change.

Balancing Teams Manually #

Step 1 – Create Balance Button: #

In admin menu or lobby UI:

Add button: “Balance Teams”

Bind to function: OnBalanceClicked

Step 2 – Call Balance Function: #

On Balance Button Clicked:

void OnBalanceClicked()

{

 // Get Team Manager
 TeamManager = GetGameState()->FindComponentByClass(AC_TeamManager);

 // Force balance
 TeamManager->BalanceTeams();

 // Show confirmation
 ShowMessage("Teams balanced!");

}

Step 3 – Verify Balance: #

After balancing:

Before:

Team A: 7 players

Team B: 1 player

After BalanceTeams():

Team A: 4 players

Team B: 4 players

Players redistributed evenly.

• —

END OF DOCUMENTATION

Summary:

The Team Manager System provides complete team management for multiplayer games:

Core Components:

• AC_TeamManager (GameState, above PlayerManager): Team creation, assignment, balancing
• AC_TeamCommunicator (PlayerController): Stores team index, team switching RPC

Key Features:

• Team Structure: Struct_TeamInfo (Team Name, Team Tag, Members array of strings)
• Team Creation: Initial (on level load), on-demand (when players join), manual (via code)
• Auto-Assignment: Balanced (least-filled team) or first-available (fill in order)
• Team Balancing: Max balance difference, force rebalance function
• Capacity: Max teams, max members per team
• Lobby Persistence: Save teams to Game Instance, restore in gameplay, persist across games
• Free For All: All players on one team, friendly fire enabled
• Team Colors: Own team vs opposite team colors (for UI)
• Team Switching: Mid-game switching via Interaction Pads or custom UI
• AI Support: Same assignment logic, AI removed when players join if teams full
• Events: OnTeamInfoChanged (player assigned/removed), OnPlayerJoinedButFullTeams

Integration: Binds to Player Manager events (join/leave/rejoin); provides team structure for Score Manager and Game Mode System.

Complete team management for any multiplayer game!
